Zero-Latency 4K HDMI KVM Extender, 4K@60hz HDMI with stereo audio & USB 2.0, up to 100m/330ft. HDBaseT Extender w/ 4-Port USB 2.0 for PC Control, 1080P@120Hz, Bi-Directional stereo & RS232, one-way PoH,DIP switch for EDID management, HDMI 1.4, no HDCP.

4KEX100-KVM

4K UHD & Zero Latency:
Transmits 4K@60hz HDMI signal up to 100m/330ft over single CAT6/7 cable, along with stereo audio and USB 2.0 extension. Also supports 1080P@120hz, ideal for PC game control.

USB 2.0 up to 480Mbps:
1x USB host port on the transmitter, 4x USB device port on the receiver; easily control remote PC/NVR with keyboard, mouse and other USB 2.0 peripherals.

Bi-Directional Stereo/RS232:
This HDBaseT 2.0 extender supports bi-directional 3.5mm stereo pass-through and RS232 pass-through; also supports one-way PoH. Built-in DIP switch for EDID management.

Highly Reliable:
Certificated by CE, FCC. Built-in surge/lightning protection. Superior ESD protection. Comes with mounting ear for easy installation

ZERO-LATENCY 100M/330FT 4K KVM EXTENDER w/ HDMI 1.4

4KEX100-KVM is a high-end 4K KVM extender over HDBaseT 2.0. It offers the distribution of 4K@60Hz UHD video, analog stereo, power, RS232 and USB 2.0 up to 100m/330ft over a single CAT6 or above cable. It also supports 1080P@120hz, ideal for PC game control. Additional features include bi-directional 3.5mm stereo pass-through, independent DIP switch for EDID management, etc. This HDMI KVM extender is ideal for homes, offices, control centers, video surveillance centers, conference rooms, schools, etc.

	4K@60 Ultra HD Video This high-end HDBaseT 2.0 KVM extender supports up to 4K@60Hz (4:2:0) resolution. It can extend ultra HD image up to 100m/330ft with zero signal loss or delay. It also supports 1080P@120hz, ideal for PC game control.
Effortless KVM Extension The HDMI KVM extender provides remote source PC control with keyboard and mouse, interactive display operation, data transmission and USB streaming over distances up to 330ft/100m. High-speed USB 2.0 up to 480Mbps passes through over HDBaseT with zero delay.
	Wonderful Gaming Experience with 1080P@120hz For e-sports games where every second counts, low refresh rate can cause picture lag, greatly affecting the player’s performance. The HDMI KVM extender supports 1080P@120Hz video input, ensuring your game sources can be effectively extended. Thus, you can have an unprecedentedly smooth and seamless gaming experience.

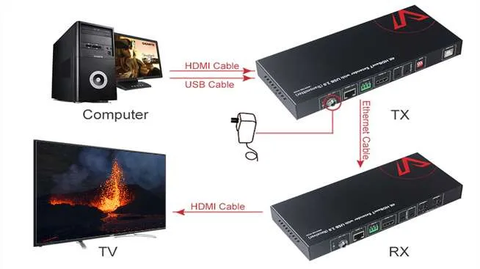

One-Way PoH With 48V PoH integrated inside, this HDMI KVM extender only requires one power supply connected to the transmitter to power both units. Its 12V power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected.

Key Features

Extends 4K@60Hz HDMI, USB 2.0, stereo audio, and RS232 signals up to 100m (330ft) over HDBaseT 2.0
Supports 1080P@120Hz for low-latency gaming applications
High-speed USB 2.0 pass-through up to 480Mbps
Includes 1 USB host port on the transmitter and 4 USB device ports on the receiver
Supports bi-directional analog stereo and RS232 pass-through
One-Way PoH (Power over HDBaseT) powers both units with a single power adapter
Built-in DIP switch EDID management for reliable display compatibility
Plug-and-play installation with no software or drivers required
CE and FCC certified with surge and ESD protection
Includes mounting brackets for professional installations

Transmitter


Video
Input Signal Type	HDMI 1.4 with 4K
Input Resolution Support	4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 1920×1080/120Hz, 1080P, 1080I, 720P, 576p, 576i, 480p
Maximum Pixel Clock	297MHz
Output Signal Type	HDBT 2.0
Output Resolution Support	4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 1920×1080/120Hz, 1080P, 1080I, 720P, 576p, 576i, 480p
Audio
Audio input	3.5mm Mini jack, stereo
Audio output	3.5mm Mini jack, stereo
Control
Control method	1x RS232, 1x USB-Host;
General
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Humidity	10% to 90%, non-condensing
ESD Protection	Human-body Model:±8kV (Air-gap discharge)/ ±4kV (Contact discharge)
Surge Protection	Voltage: ±1 kV(Ten times respectively for the positive and negative voltage)
Electrical Fast Transient/Burst	Data communication cord: 1 kVPower cord: 2 kV
Power Supply	DC 12V 2A
Power Consumption(Maximum)	≤12 W (pair)
Device Dimensions(W x H x D)	210mm x 25mm x 90.2mm /8.27’’ x 0.98’’ x 3.55’’
Product Weight	0.44kg/0.97lb

Receiver

Video
Input Signal Type	HDBT 2.0
Input Resolution Support	4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 1920×1080/120Hz, 1080P, 1080I, 720P, 576p, 576i, 480p
Maximum Pixel Clock	297MHz
Video
Output Signal Type	HDMI 1.4 with 4K
Output Resolution Support	4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 1920×1080/120Hz, 1080P, 1080I, 720P, 576p, 576i, 480p
Audio
Audio input	3.5mm Mini jack, stereo
Audio output	3.5mm Mini jack, stereo
Control
Control method	1x RS232, 4x USB Device
General
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Humidity	10% to 90%, non-condensing
ESD Protection	Human-body Model:±8kV (Air-gap discharge)/ ±4kV (Contact discharge)
Surge Protection	Voltage: ±1 kV(Ten times respectively for the positive and negative voltage)
Electrical Fast Transient/Burst	Data communication cord: 1 kVPower cord: 2 kV
Power Supply	DC 12V 2A
Power Consumption(Maximum)	≤12 W (pair)
Device Dimensions(W x H x D)	210mm x 25mm x 90.2mm /8.27’’ x 0.98’’ x 3.55’’
Product Weight	0.46kg/1.01lb
