USB-C KVM Switch Docking Station for 1 laptop & 2 desktops, 4K Dual Monitor Design,type-c 65W Charging for Laptop, Ethernet port, EDID, Hotkey Switch, HDMI, 4K@60Hz, 1080P@240Hz, USB 3.0

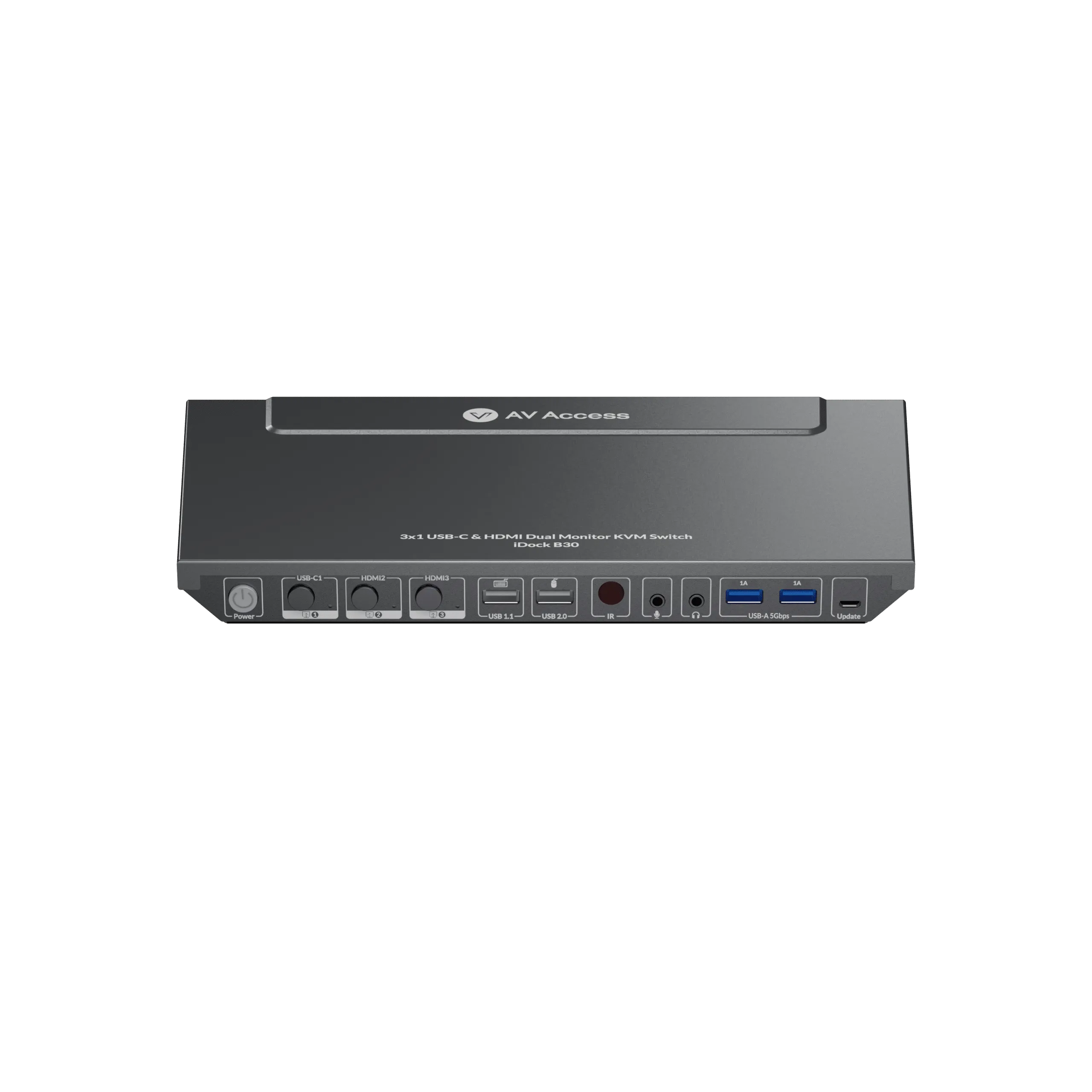

iDock B30

Description
Specifications

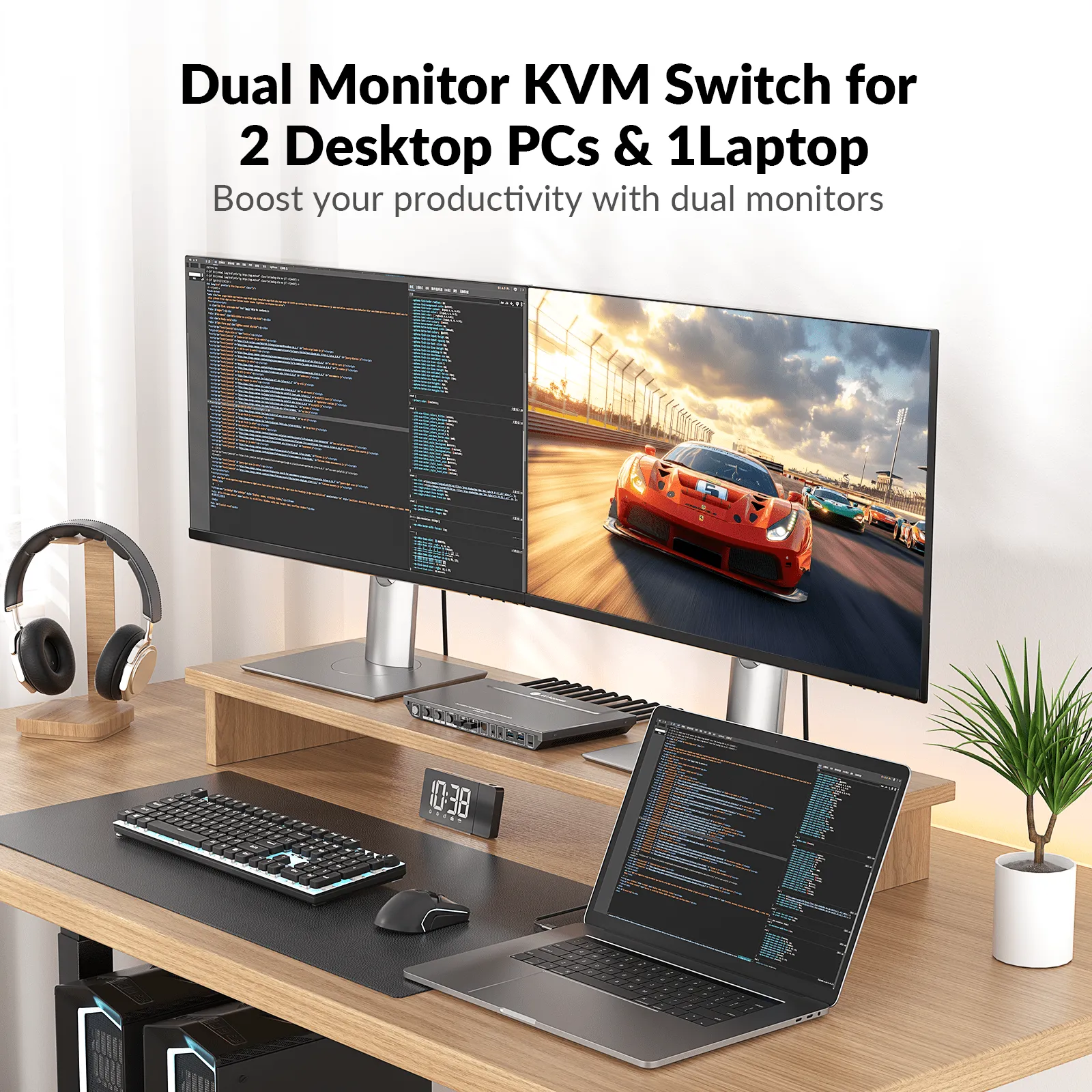

The AV ACCESS KVM Docking Station iDock B30 is a versatile USB-C KVM switch docking station designed for professionals who work with two desktop PCs and one laptop. It enables seamless switching between three computers while sharing dual 4K monitors, USB peripherals, Ethernet, and audio devices through a single compact solution.

With dual 4K@60Hz display support, 65W USB-C Power Delivery, EDID emulation, and multiple switching options, the AV ACCESS KVM Docking Station iDock B30 helps create a cleaner, more productive workspace for business, education, creative projects, and gaming.

Key Features

KVM switch for two desktops and one USB-C laptop
Dual 4K@60Hz monitor support
Integrated 10-in-1 docking station

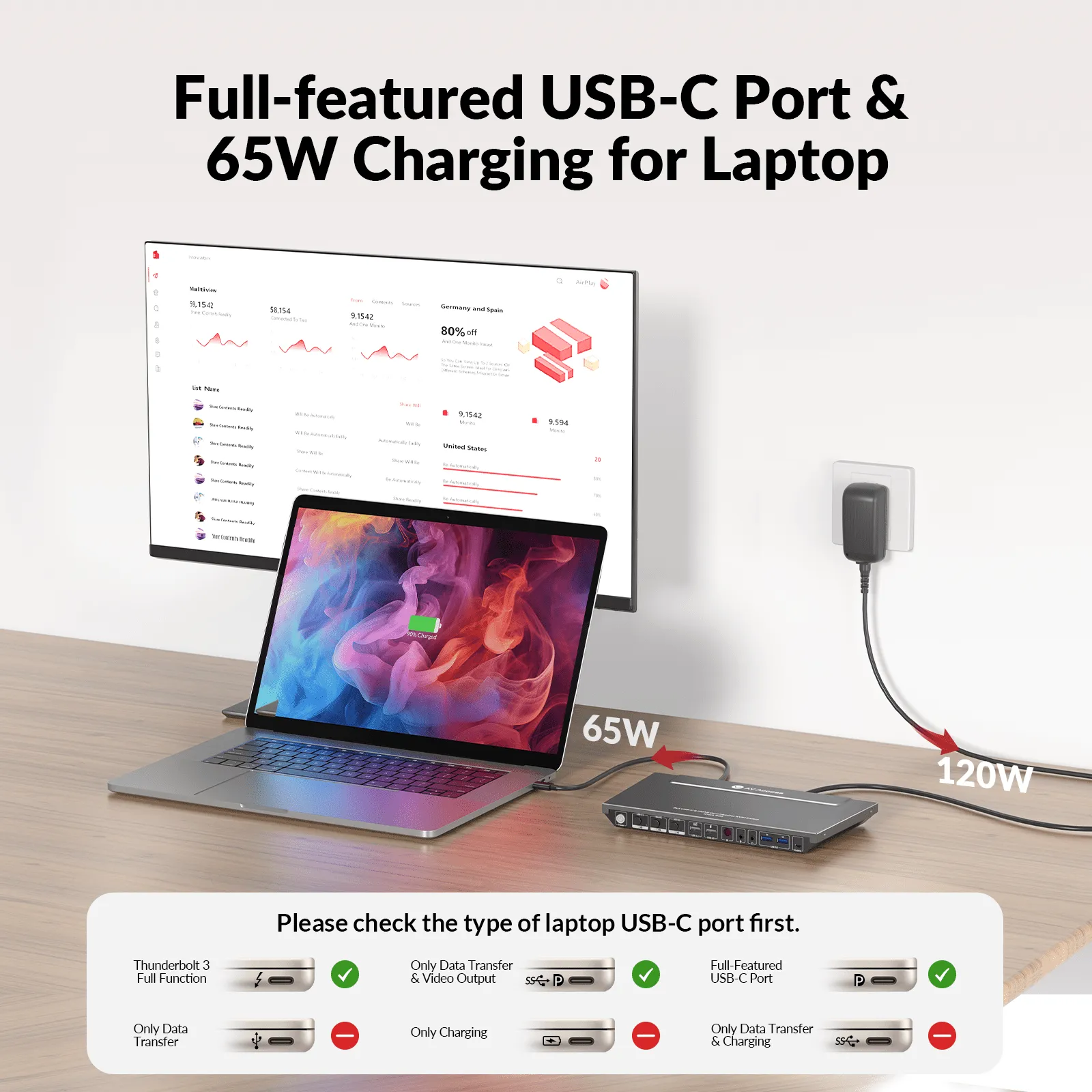

USB-C with 65W Power Delivery
USB 3.0 peripheral sharing
Gigabit Ethernet connectivity
EDID emulation for seamless display switching

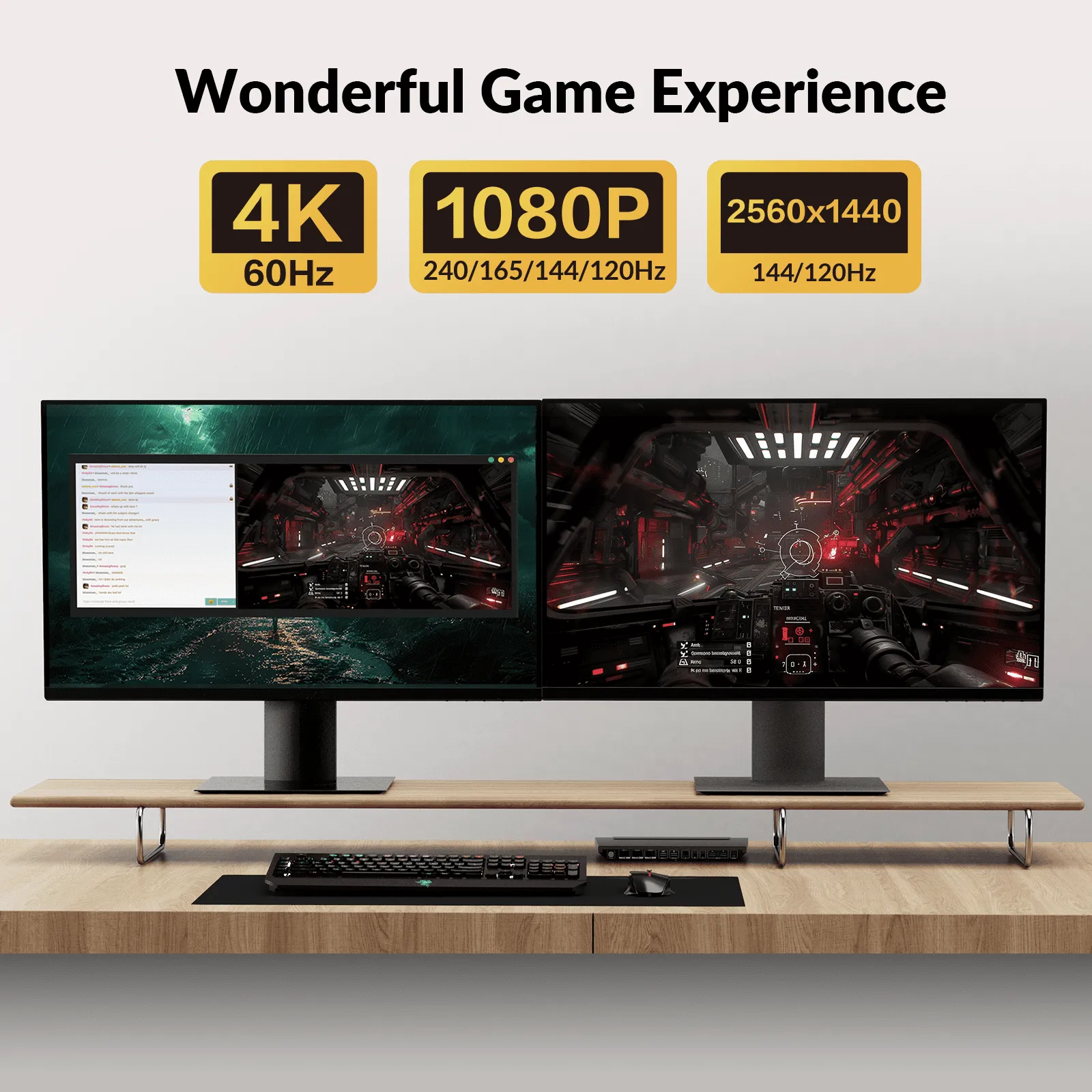

Supports up to 1080p@240Hz and 1440p@144Hz
Automatic PC wake-up

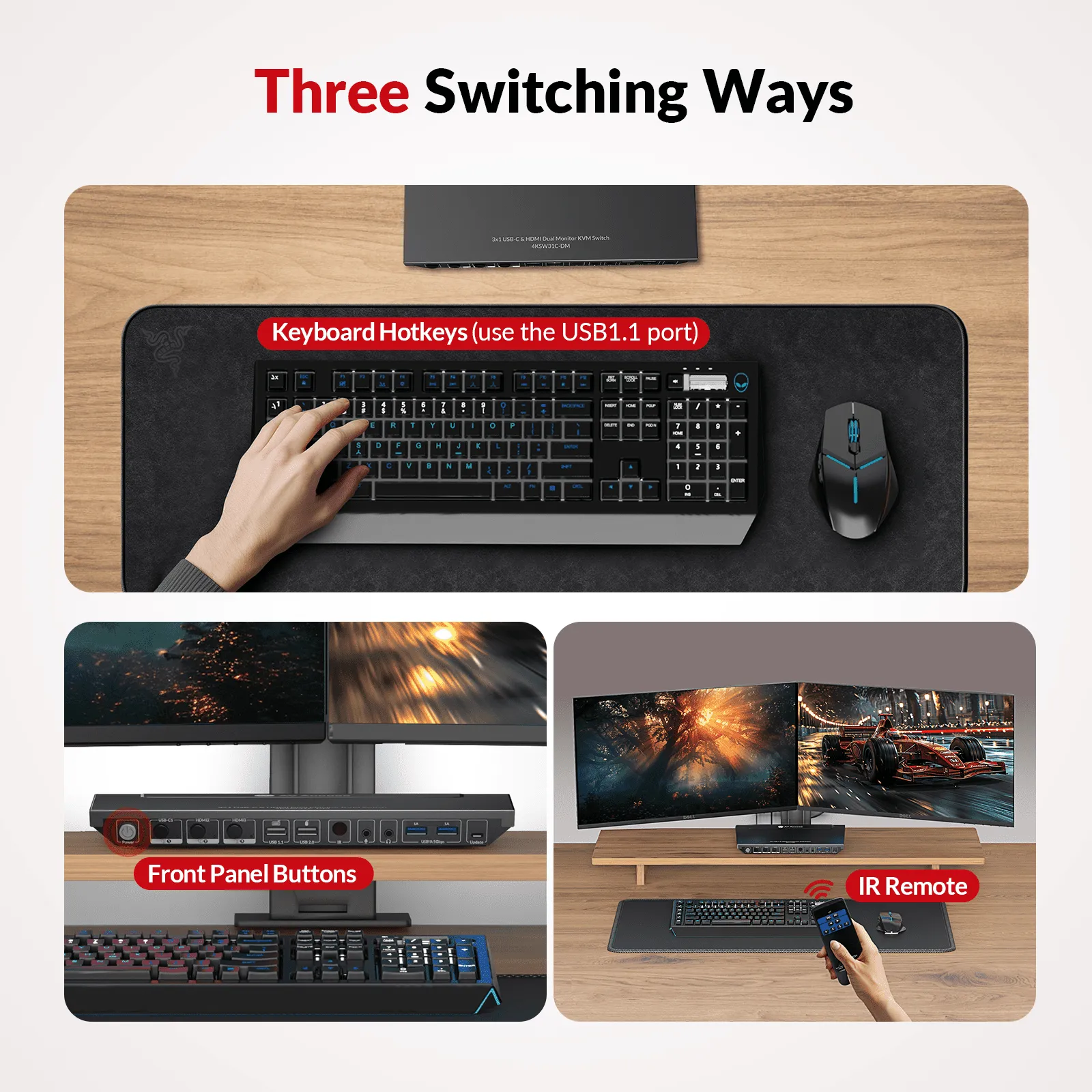

Front-panel, IR remote, and keyboard hotkey switching
Driver-free plug-and-play installation

Technical

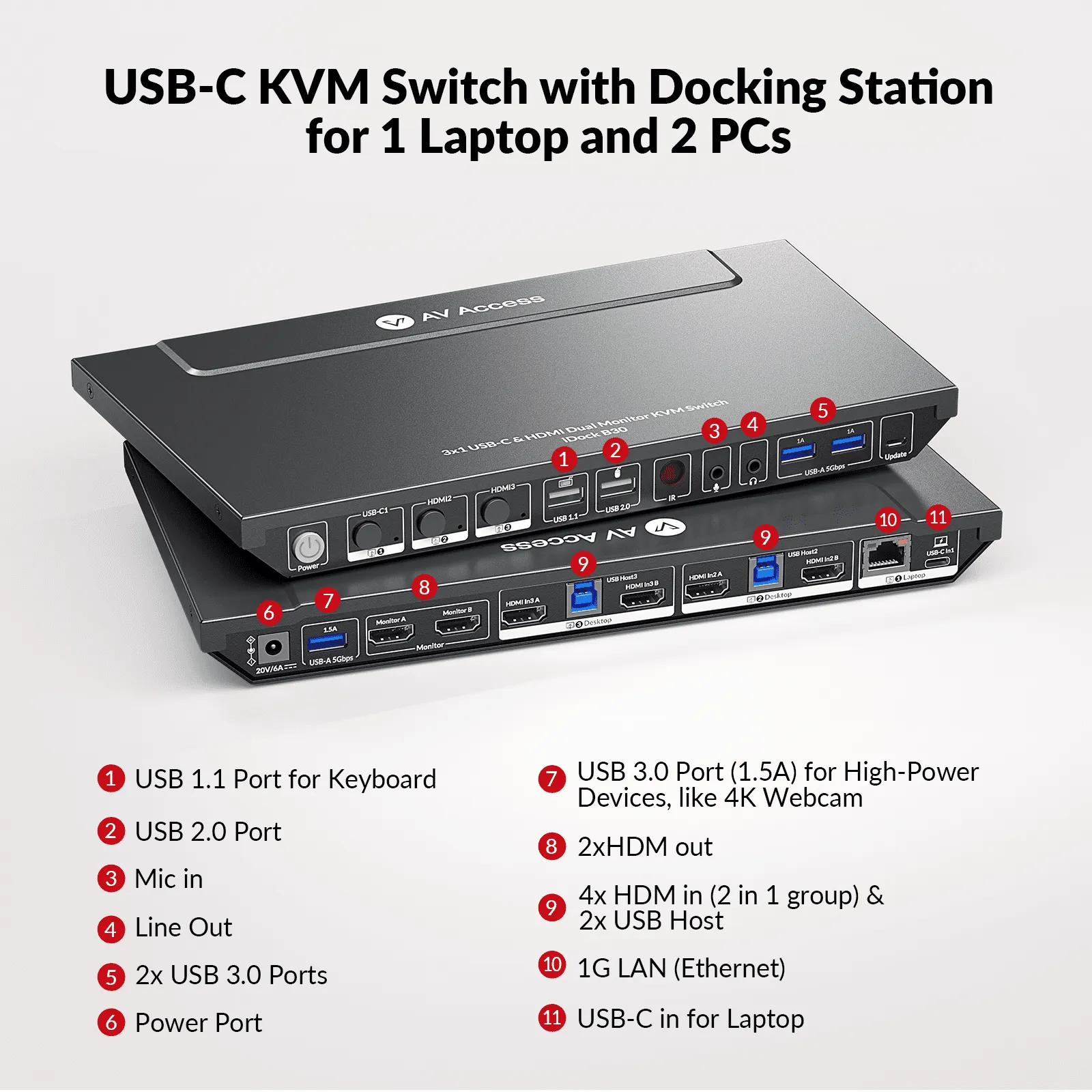

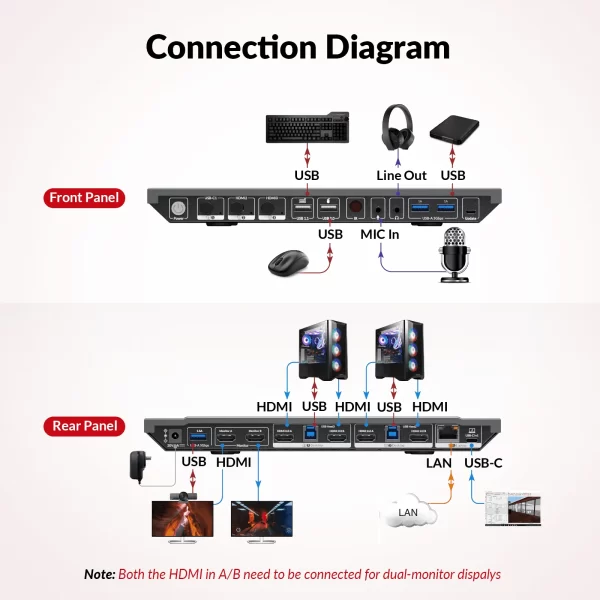

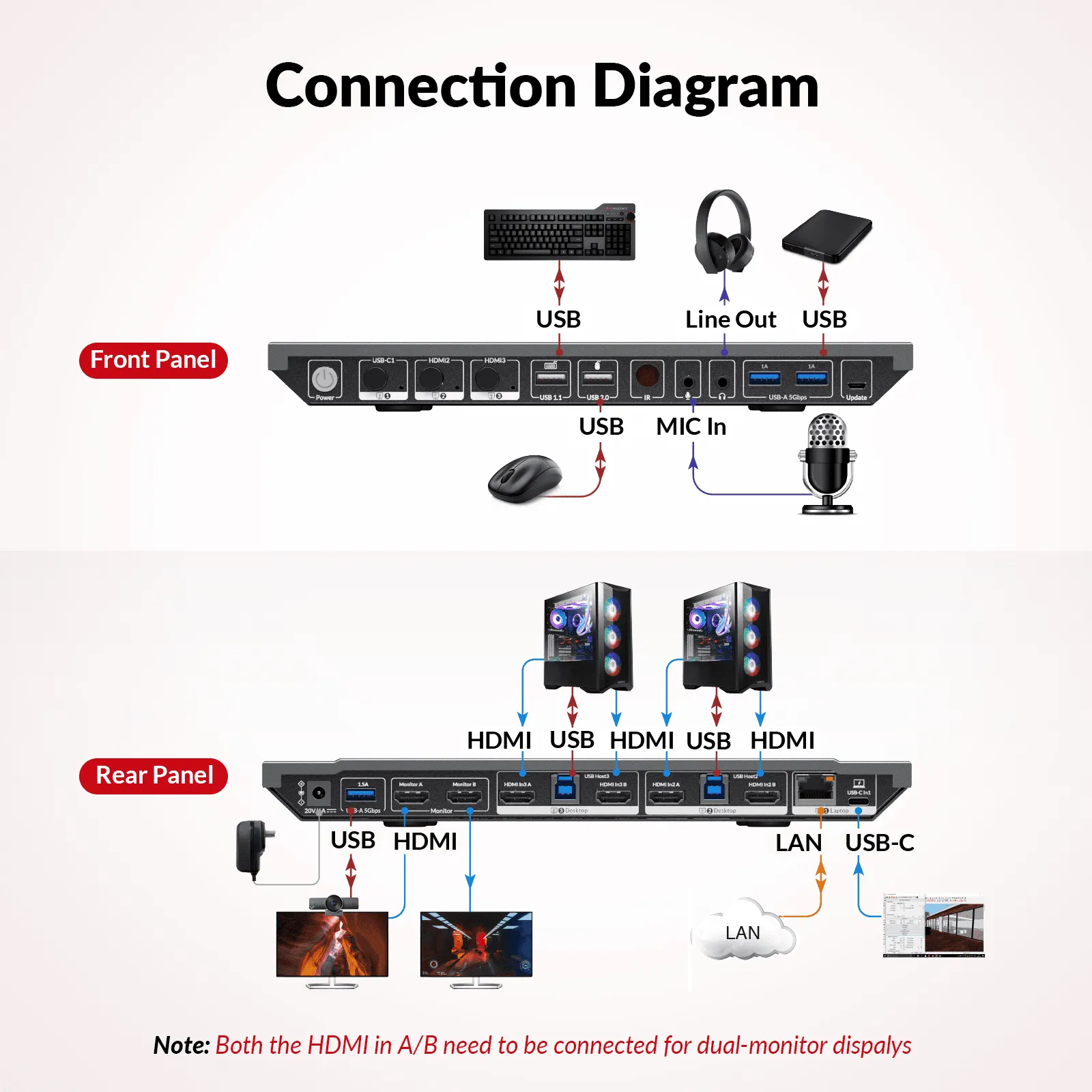

Input & Output Ports	1 x USB C In (USB 3.2 Gen 1); 4 x HDMI In; 2 x USB Host (USB 3.0 Type-B port); 1 x LAN; 3 x USB Device (USB 3.0 Type-A port); 1 x USB 1.1 (USB 1.1 Type-A port); 1 x USB 2.0 (USB 2.0 Type-A port); 1 x Line Out; 1 x Mic In; 1 x DC 20V/6A
Input/Output Signals	USB C Input: USB 3.2, supports DP MST mode, can output two videos (resolutions up to 4K@60Hz 4:4:4 8bit) at the same time HDMI Input/Output: HDMI 2.0 with resolutions up to 4K@60Hz 4:4:4 8bit / 4K@60 4:2:0 12bit with HDCP 2.2 compatibility
Input/Output Resolution Supported	SMPTE: 1280x720P^{1,2,3,4,5,6,7,8}, 1920x1080I^6,8, 1920x1080P^{1,2,3,4,5,6,7,8,9,10,11,12}, 2560×1080⁹, 3840×1080⁹, 3840×2160^2,3,5,6,8, 4096×2160^2,3,5,6,8 VESA: 800×600⁸, 1024×768⁸, 1280×768⁸, 1280×800⁸, 1280×960⁸, 1280×1024⁸, 1360×768⁸, 1366×768⁸, 1400×1050⁸, 1440×900⁸, 1600×900⁸, 1600×1200⁸, 1680×1050⁸, 1920×1200⁸, 2560×1440^{1,2,3,4,5,6,7,8,9,10} 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = 120Hz, 10 = 144Hz, 11 = 165Hz, 12 = 240Hz
HDR Format Supported	All HDR formats, including HDR 10, HLG, HDR 10+ and Dolby Vision
Audio Format Supported	HDMI: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X MIC IN: Stereo LINE OUT: Stereo
Max Data Rate	HDMI: Up to 18Gbps USB C: 5Gbps
Maximum Pixel Clock	HDMI: 600MHz
Control Method	Front panel buttons, IR Remote, Hotkeys

General
Operating Temperature	0°C to + 45°C (32 to + 113 °F)
Storage Temperature	-20 to +70°C (-4 to + 158 °F)
Humidity	20% to 90%, non-condensing
Power Consumption	85W (Max)
Device Dimensions (W x H x D)	269.6mm x 27.5mm x 142.6mm/ 10.61’’ x 1.08’’ x 5.61’’
Product Weight	0.92kg/2.03lbs
