8K Triple Monitor KVM Switch Docking Station for 1 Desktop & 1 Laptop, (100W PD), 1G Ethernet, 8K@60Hz/4K@165Hz/1440P@240Hz

iDock B23

Description
Specifications

The AV ACCESS KVM Docking Station iDock B23 is an advanced 8K KVM switch docking station built for professionals and gamers who need to switch seamlessly between one desktop PC and one USB-C laptop. Featuring triple-monitor support, 8K Ultra HD resolution, 100W USB-C Power Delivery, and a 12-in-1 docking station, it creates a powerful workstation for multitasking, content creation, and high-performance gaming.

With support for 8K@60Hz, 4K@165Hz, 1440p@240Hz, and 1080p@240Hz, the AV ACCESS KVM Docking Station iDock B23 delivers exceptional image quality and ultra-smooth performance while allowing you to share monitors, peripherals, Ethernet, and USB devices with a single button.

Key Features

KVM switch for one laptop and one desktop

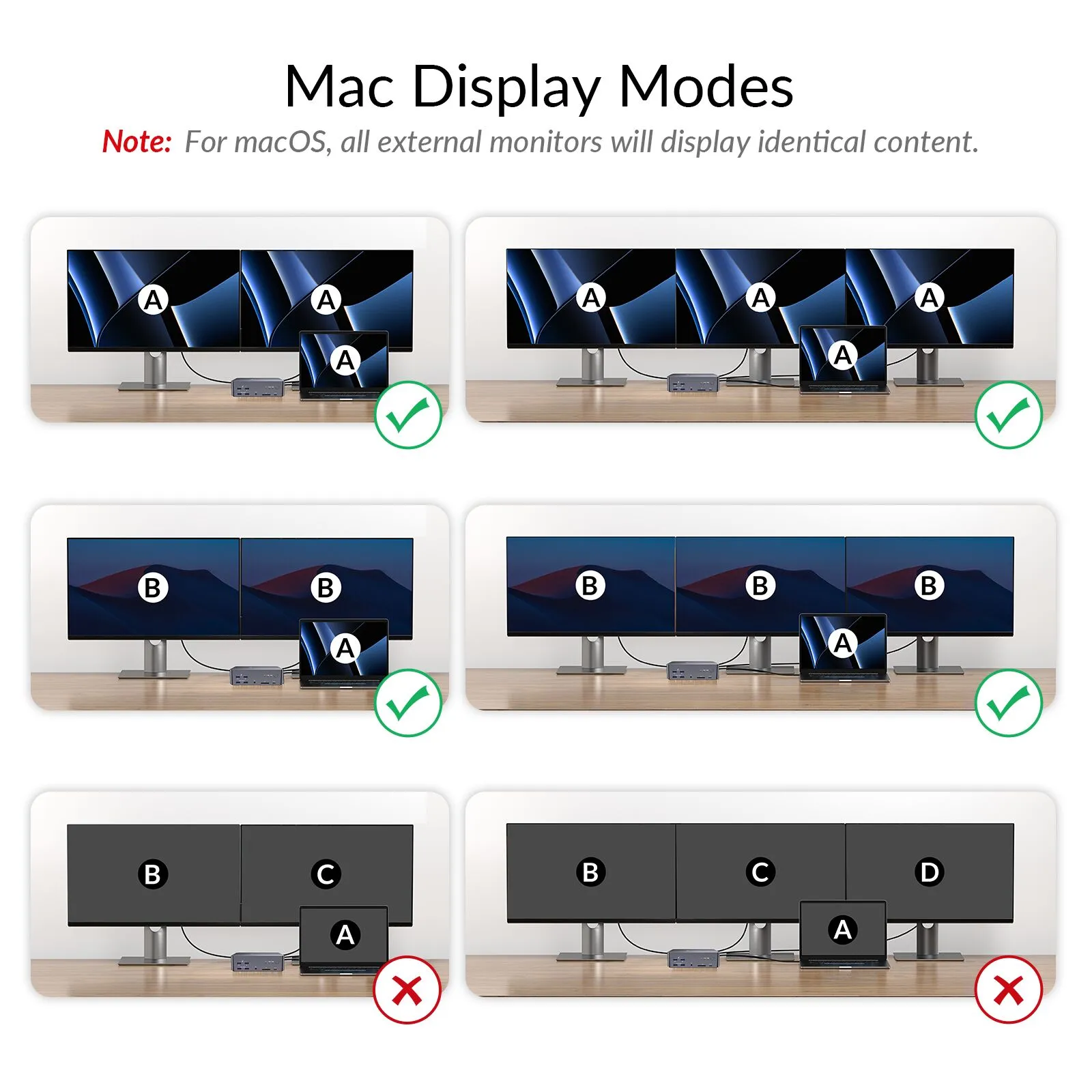

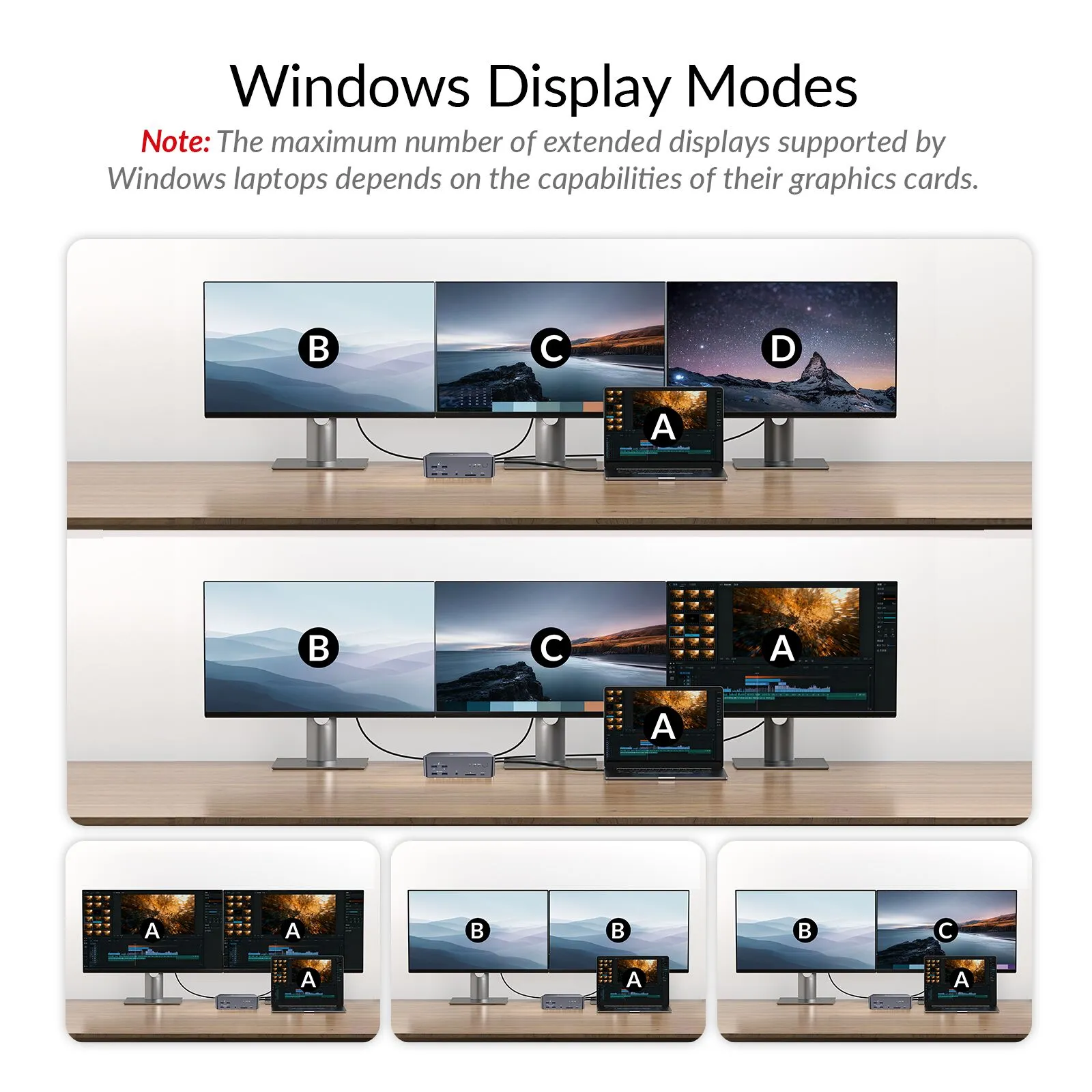

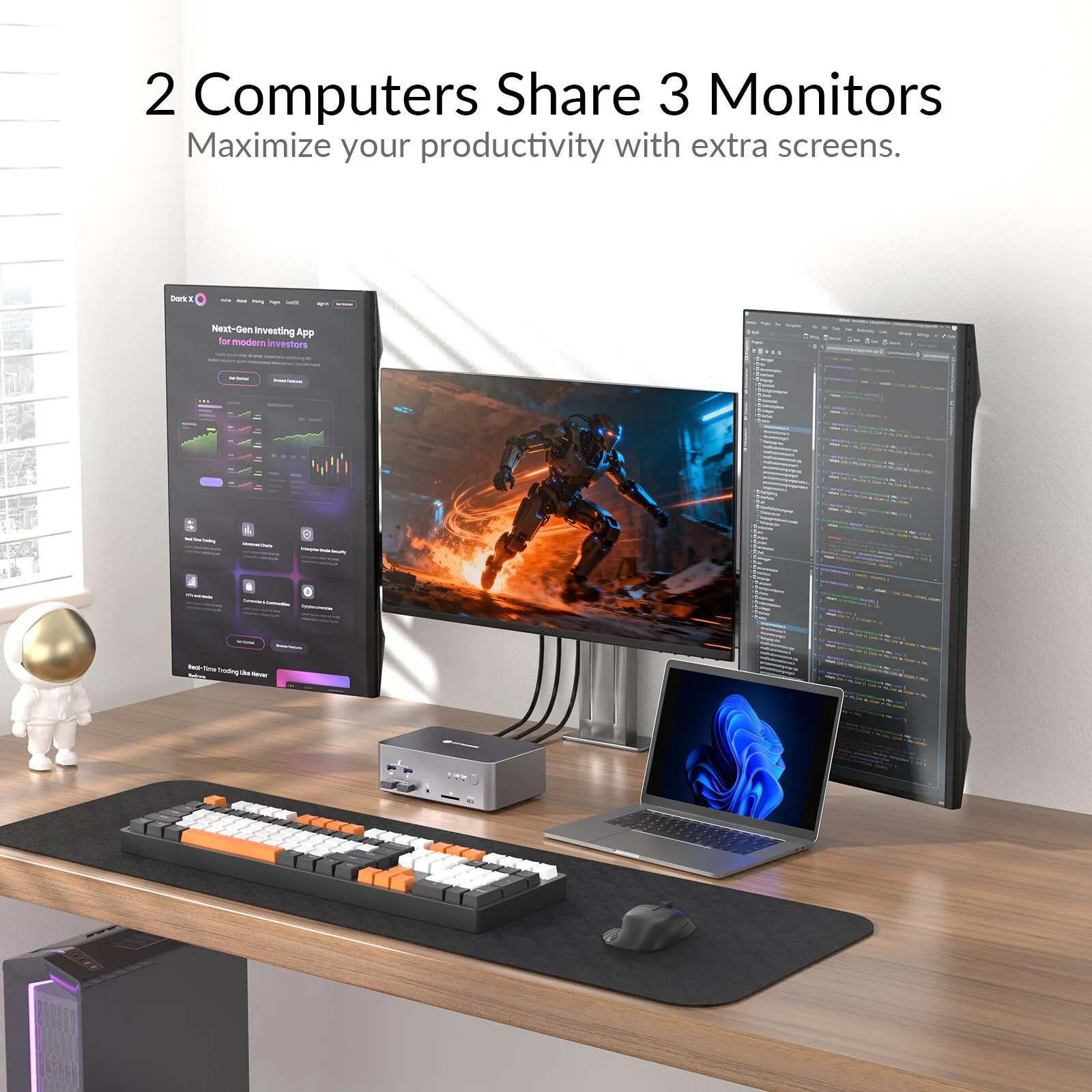

Triple-monitor support
Up to 8K@60Hz resolution

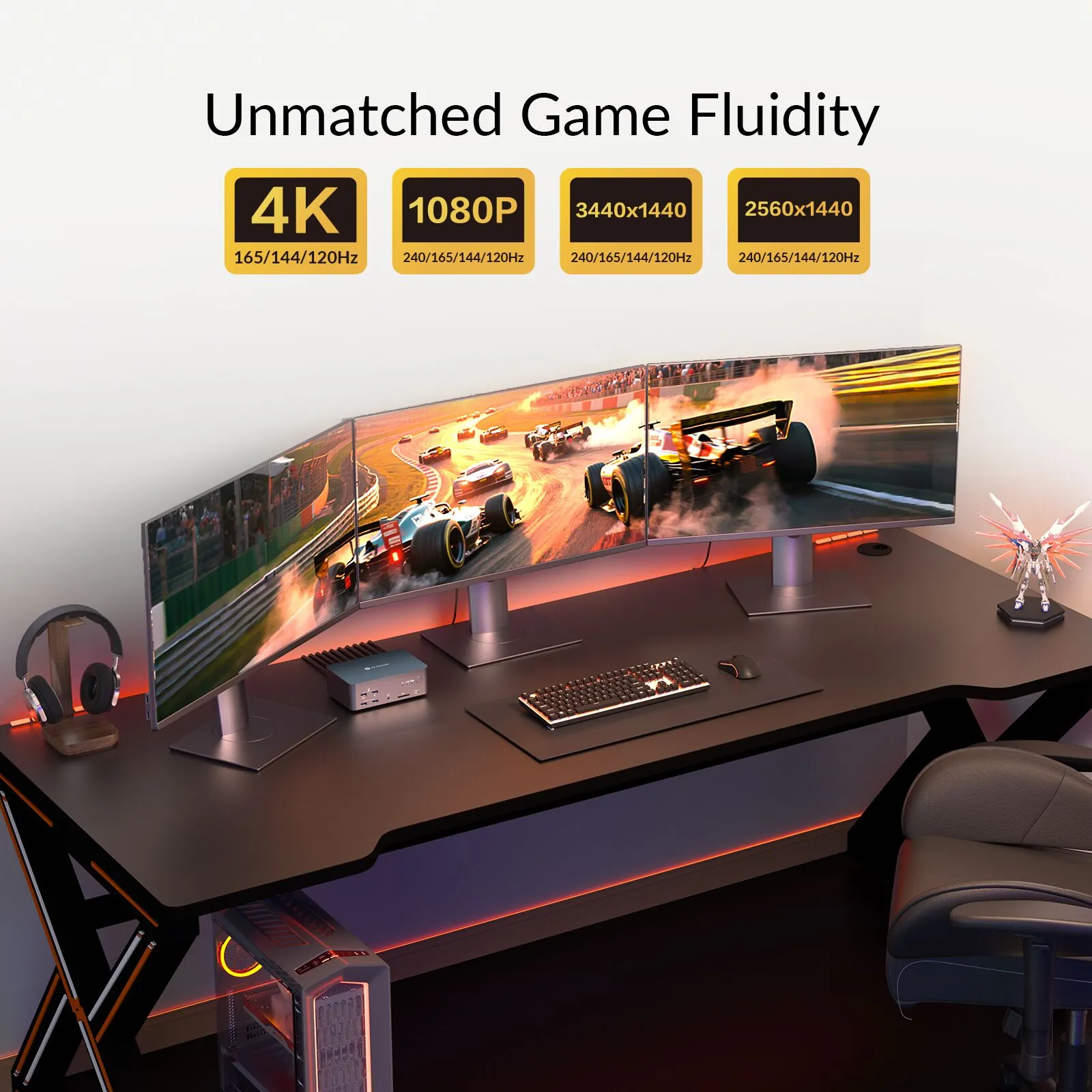

Supports 4K@165Hz and 1440p@240Hz
Compatible with G-Sync, FreeSync, and VRR
Integrated 12-in-1 docking station

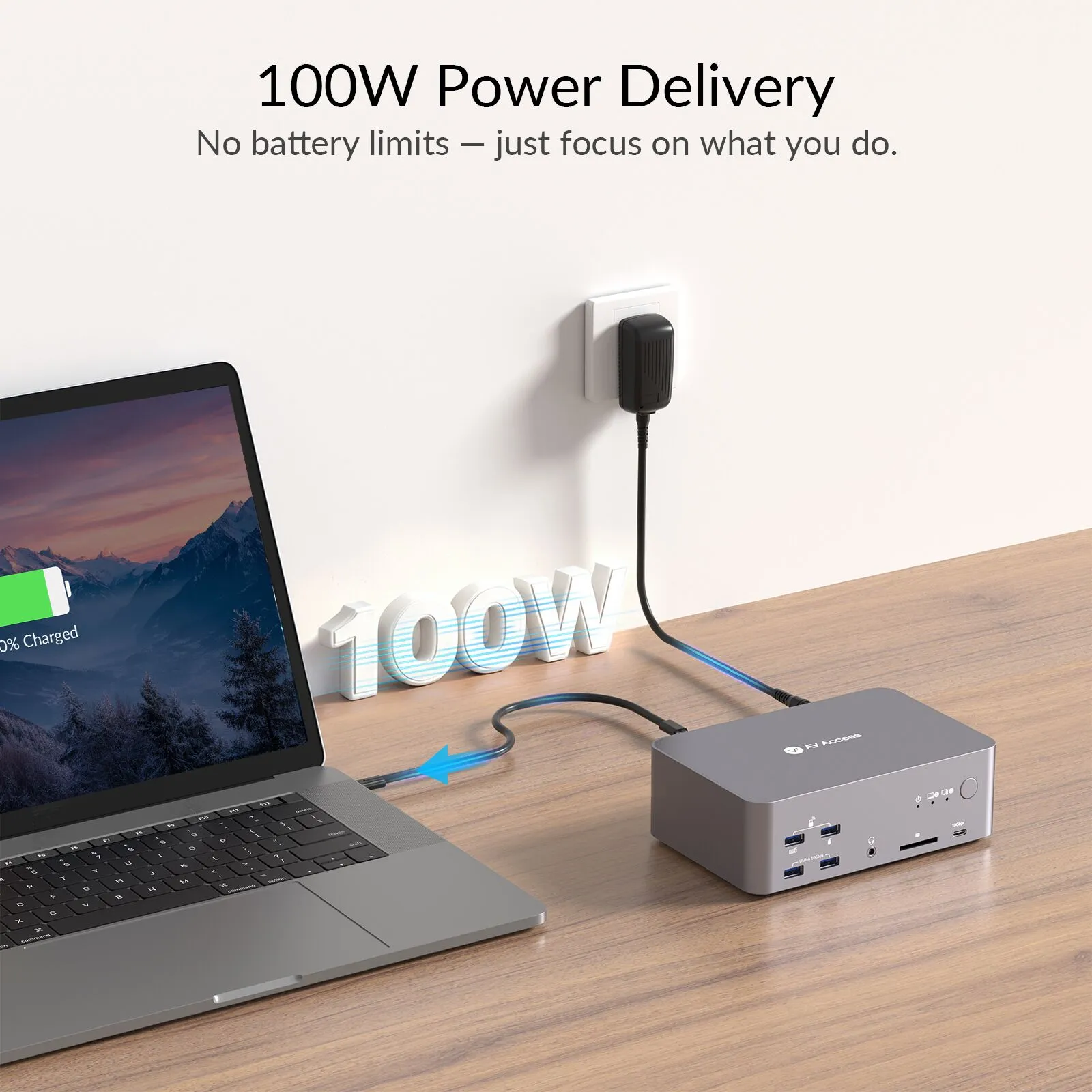

100W USB-C Power Delivery
High-speed 10Gbps USB 3.2 ports

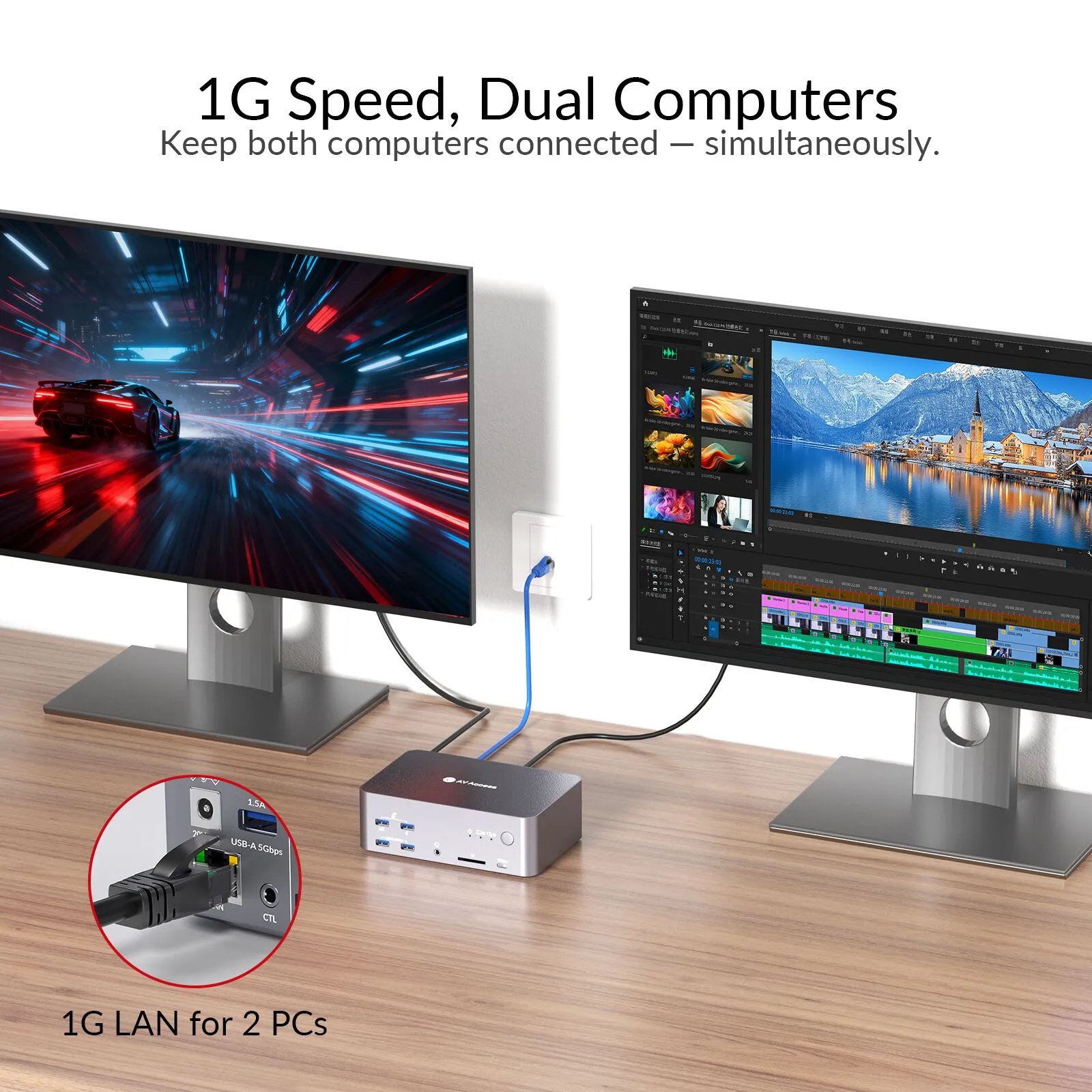

Shared Gigabit Ethernet
Automatic PC wake-up

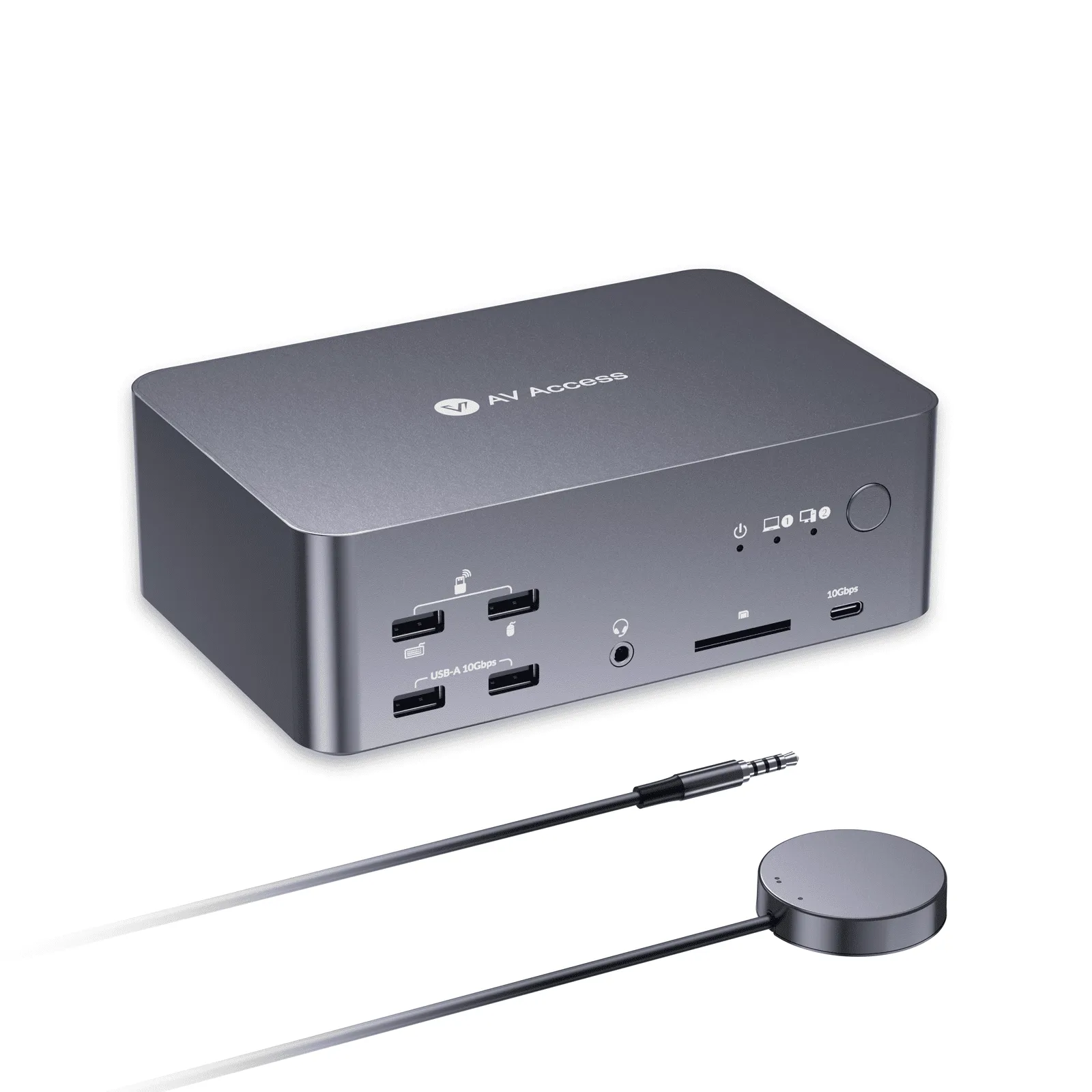

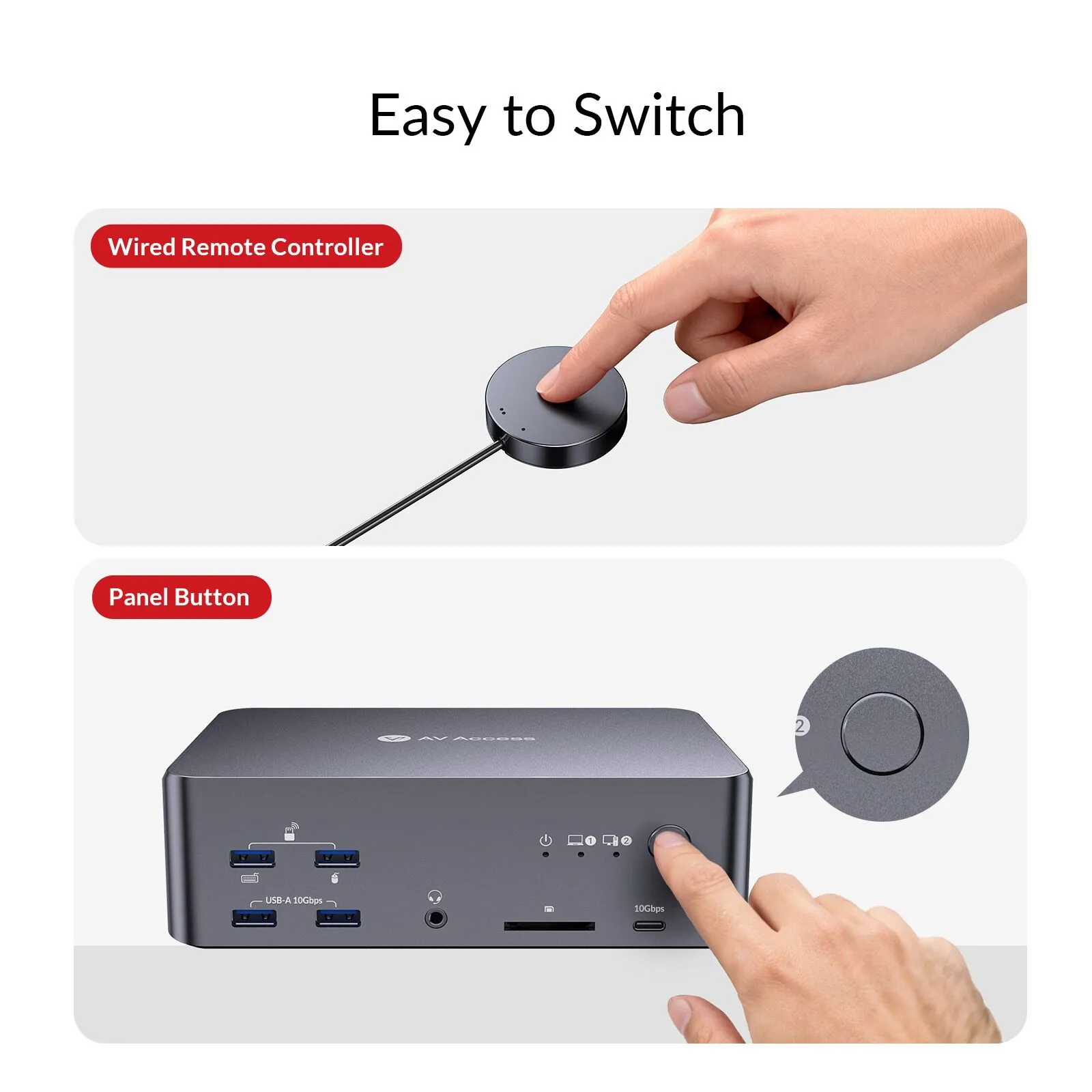

One-button switching with included remote controller
Premium aluminum enclosure
Plug-and-play installation

Technical

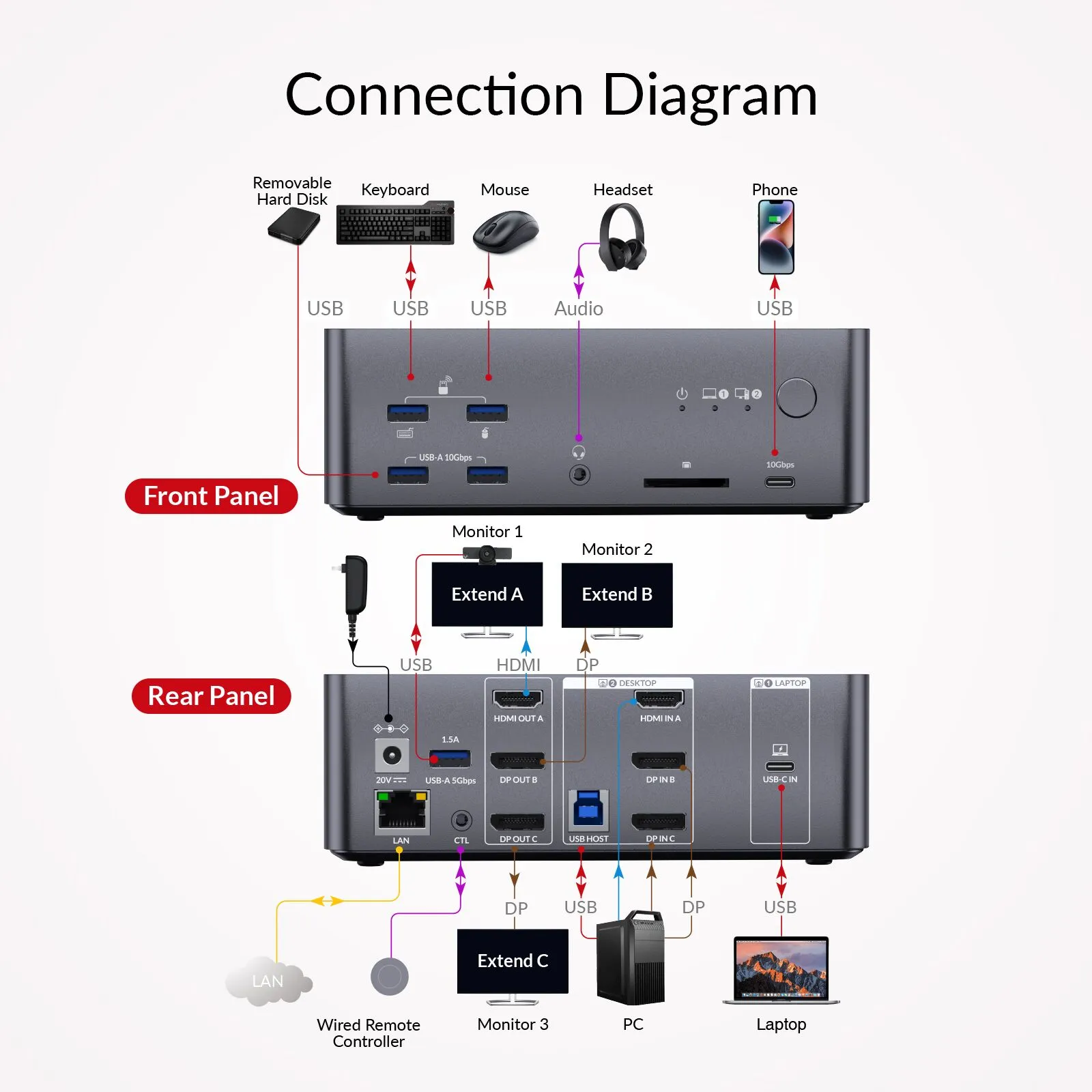

Video Input	·1 x USB C IN (Rear panel): DP Alt mode, MST/SST, DSC, DP 1.4a ·1 x HDMI IN, 2 x DP IN: HDMI 2.1, DP 1.4a & DP 2.0
Video Output	·1 x HDMI OUT: HDMI 2.1 · 2 x DP OUT: DP 1.4a & 2.0

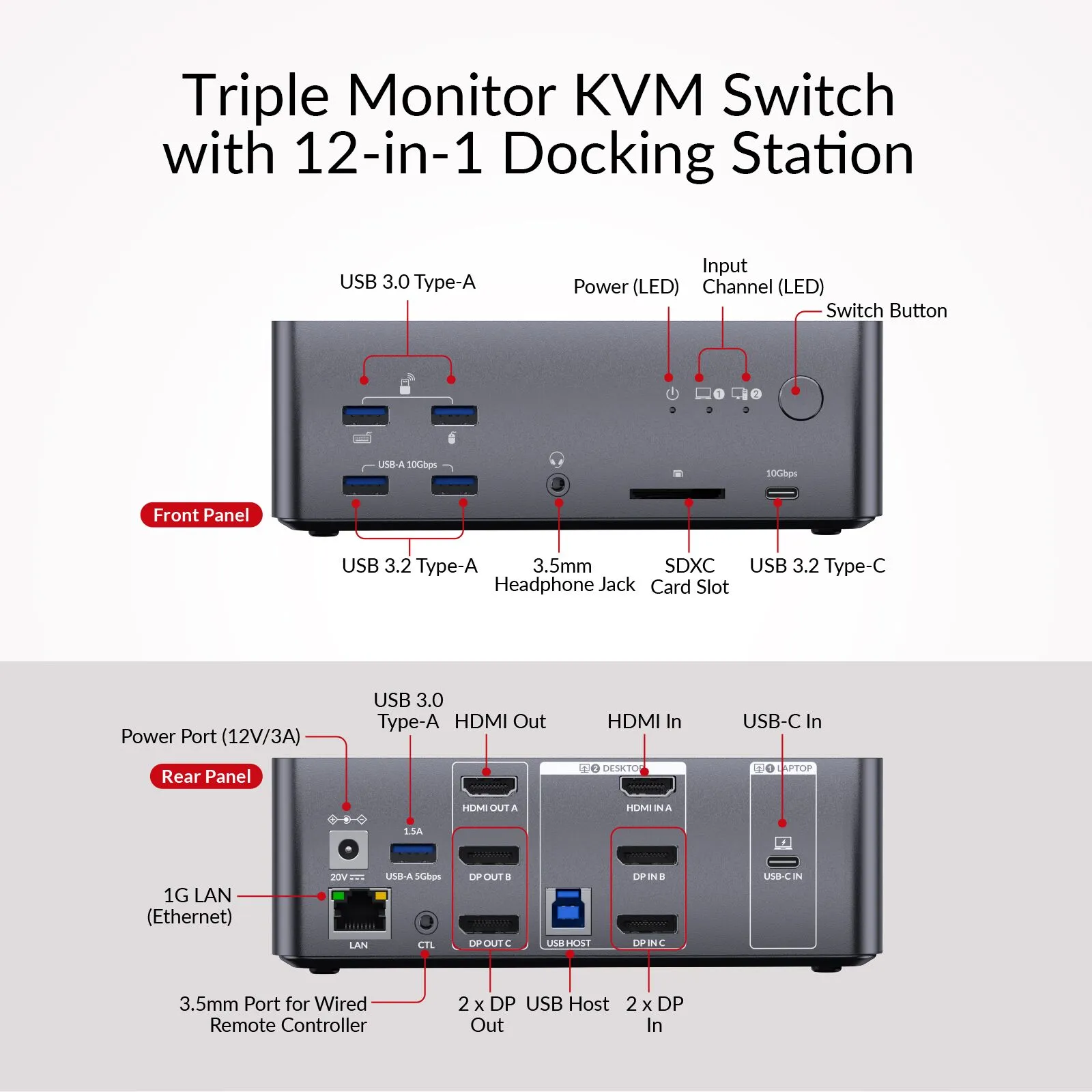

Peripheral and Expansion Ports	· USB C x 2: ‐ USB C IN (Rear panel): USB 3.2 Gen 2 (10Gbps), supports 1Gbps Ethernet passthrough and up to100W PD charging ‐ (Front panel): USB 3.2 Gen 2 (10Gbps), supports 5V/1.5A output · USB-A x 5: ‐ x 2: USB 3.2 Gen 2 (10Gbps), shared 2.5A output ‐ x 1 & x 1: USB 3.0 (5Gbps), shared 2.5A output ‐ x 1 (Rear panel): USB 3.2 Gen 2 (10Gbps), supports up to 1.5A output · USB-B x 1: USB 3.2 Gen 2 (10Gbps), supports 1Gbps Ethernet passthrough · SDXC slot: Data rate up to 104MB/s; supports capacity up to 2TB · LAN (RJ-45): Supports 1Gbps Ethernet passthrough
Input Resolutions	· For LAPTOP: Up to 4K@60Hz · For DESKTOP: Up to 8K@60Hz, 4K@165Hz/144Hz/120Hz
Output Resolutions	Up to 8K@60Hz and 4K@165Hz
HDR Format Supported	Supports all mainstream HDR formats including HDR10, HLG, HDR10+, and Dolby Vision
Audio Format Supported	· USB C IN: Fully supports multiple channel audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X · HDMI/DP: Supports all HDMI 2.1 and DP 2.0 standard audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X · 3.5mm Audio Jack: Stereo
Max Video Data Rate	USB C IN: \| HDMI: 48Gpbs \| DP: 54Gbps (13.5Gbps per channel)

General
Operating Temperature	0°C to 45°C (32 to 113°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Humidity	20% to 90%, non-condensing
Power Consumption	17W (Max, without USB load)
Device Dimensions (W x H x D)	168mm x 55mm x 110mm/ 6.61’’ x 2.17’’ x 4.33’’
Product Weight	0.73kg/1.61lbs

Resolutions and AWG

Resolution	Input Cable Length	Output Cable Length	AWG
8K@60Hz	≤ 2m	≤ 2m	30AWG
4K@165Hz	≤ 2m	≤ 2m	30AWG
4K@120Hz	≤ 2m	≤ 2m	30AWG
4K@60Hz	≤ 3m	≤ 3m	30AWG
