eShare C30 4K@60Hz Conference Room Docking Station with USB C & HDMI Input, USB 3.0 Hub for Webcam and Speakerphone, BYOM, Plug & Play

eShare C30

Description
Specifications

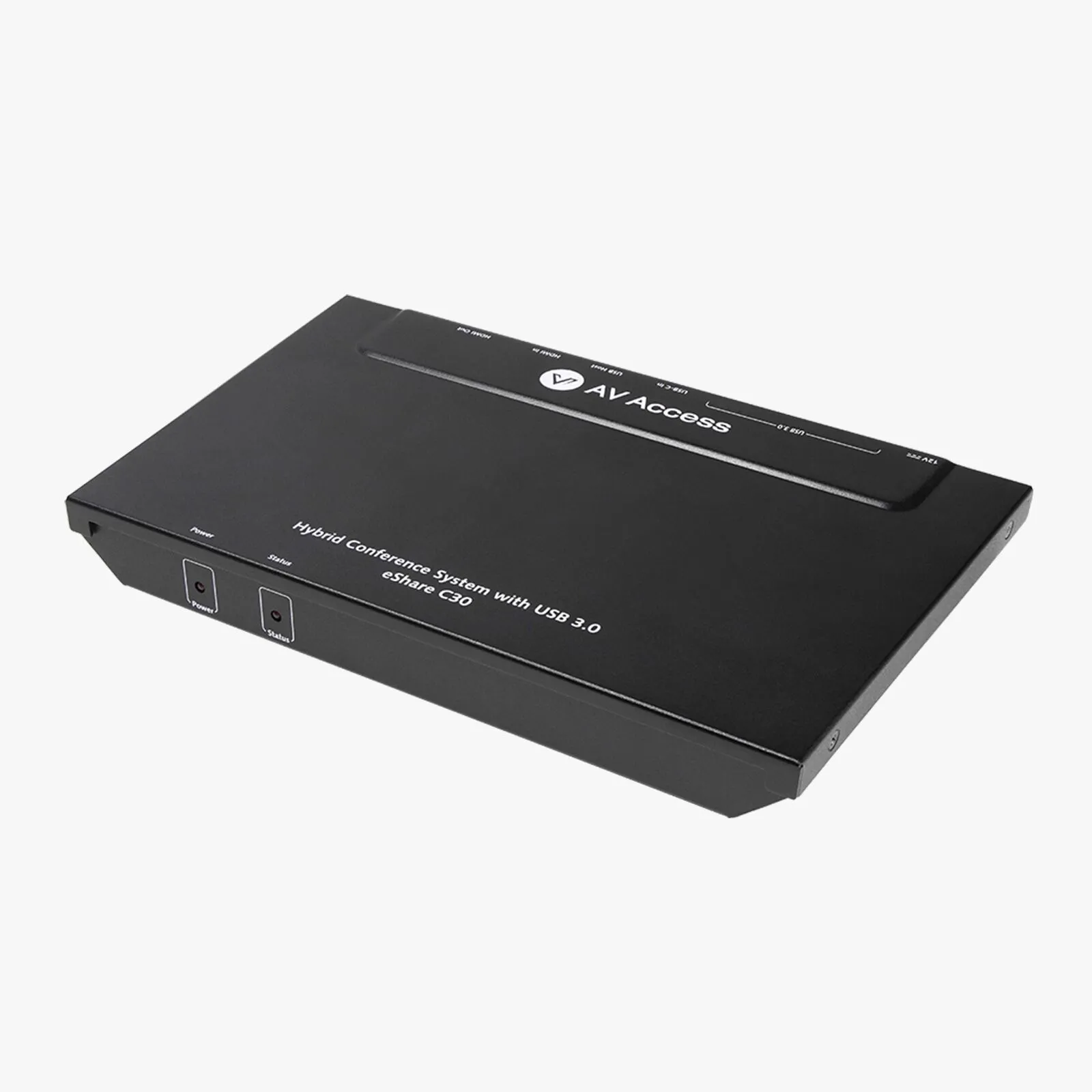

The AV ACCESS Conference Docking Station eShare C30 is an all-in-one solution designed to simplify modern meeting rooms. Combining a USB hub, HDMI output, and BYOM (Bring Your Own Meeting) functionality into a single compact device, it enables seamless 4K presentation sharing and professional video conferencing with just one cable.

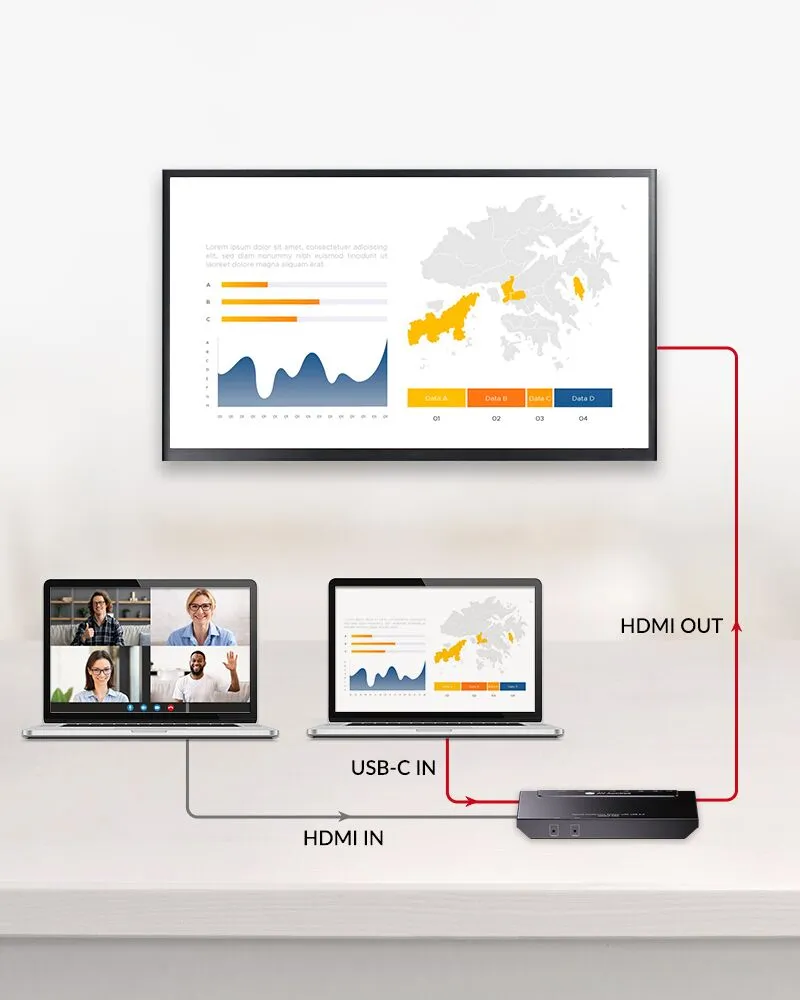

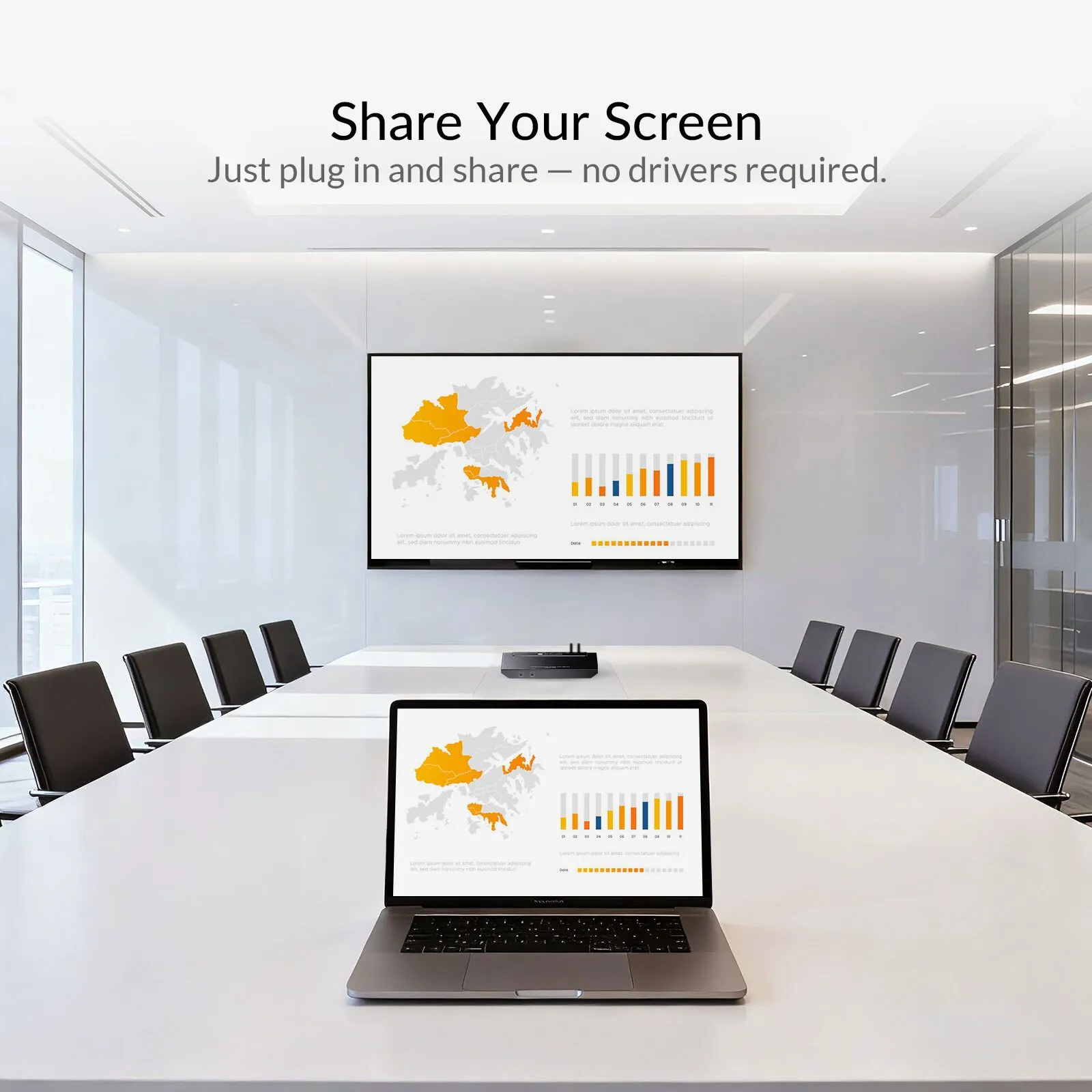

Whether you use a USB-C laptop or an HDMI-enabled device, the eShare C30 provides instant plug-and-play connectivity without requiring any software installation. Simply connect, present, and collaborate.

One Cable for Screen Sharing and Conferencing

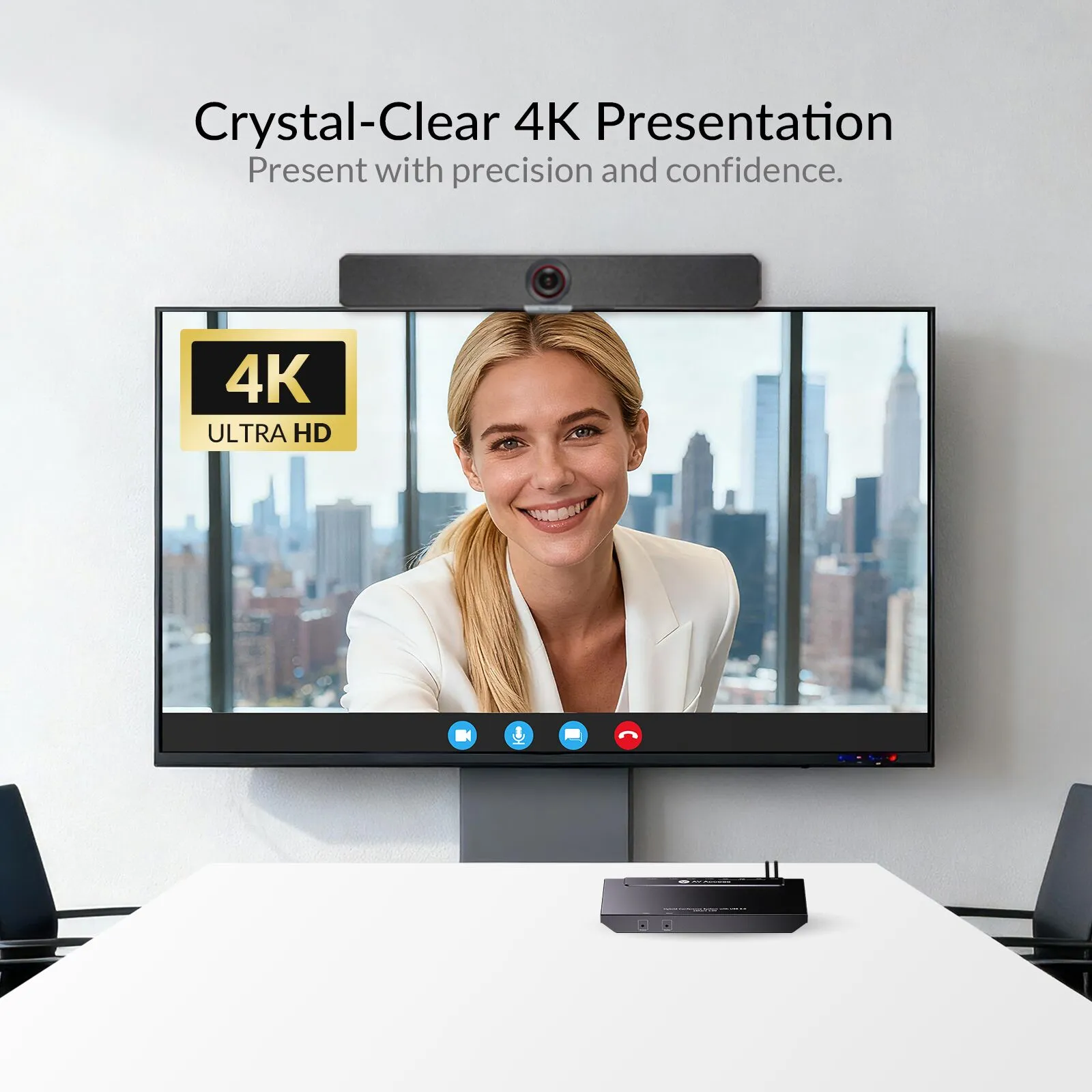

With support for 4K@60Hz 4:4:4 video output, the AV ACCESS Conference Docking Station eShare C30 delivers crystal-clear presentations with outstanding color accuracy. The same USB-C connection also links your conferencing peripherals, making meetings faster and more efficient.

Built-in USB 3.0 Hub for BYOM

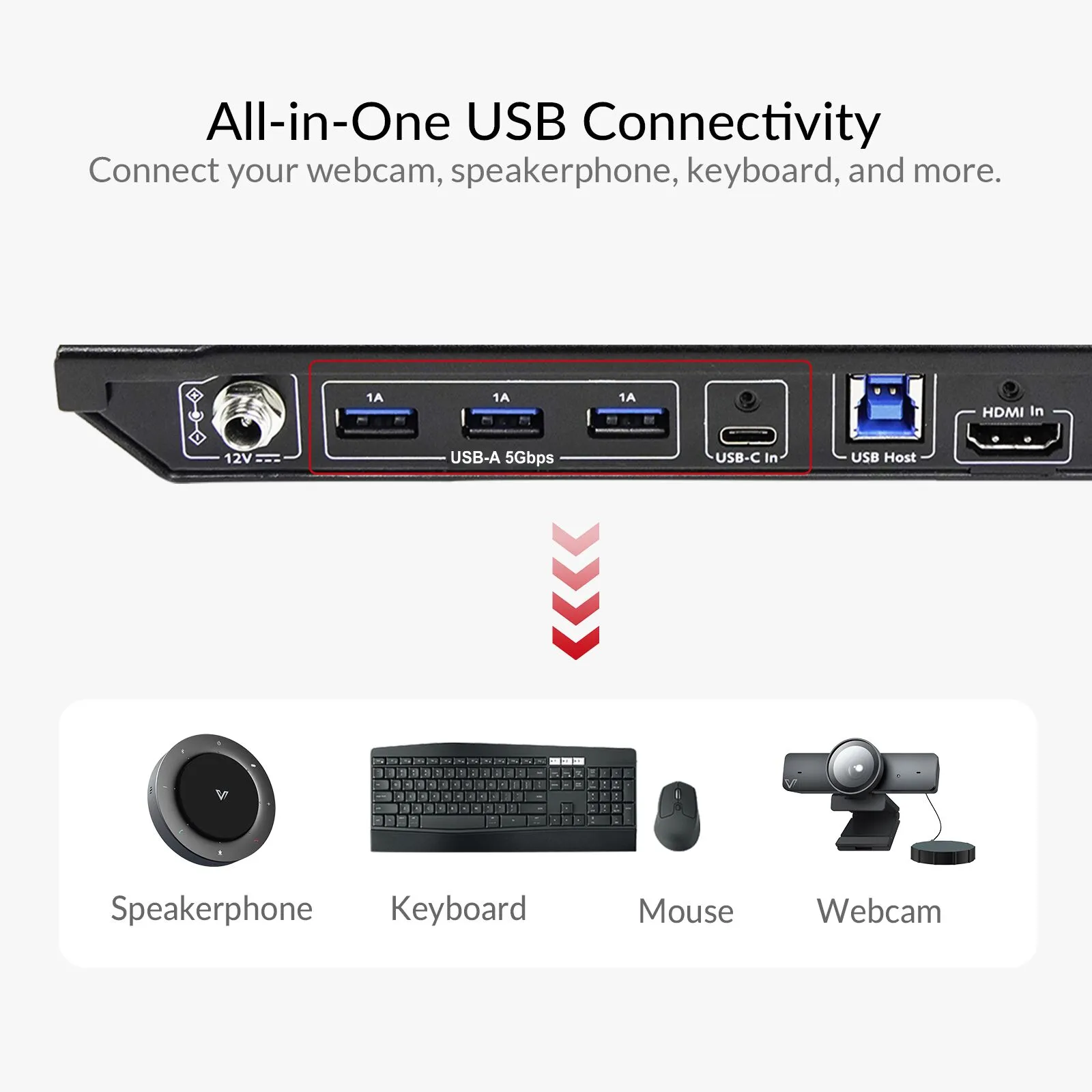

The integrated USB 3.0 hub features three high-speed USB ports, allowing you to connect a 4K webcam, speakerphone, microphone, keyboard, or other USB conference devices. This BYOM capability lets users run meetings using their preferred conferencing platform while utilizing the room’s professional AV equipment.

Clean and Organized Meeting Spaces

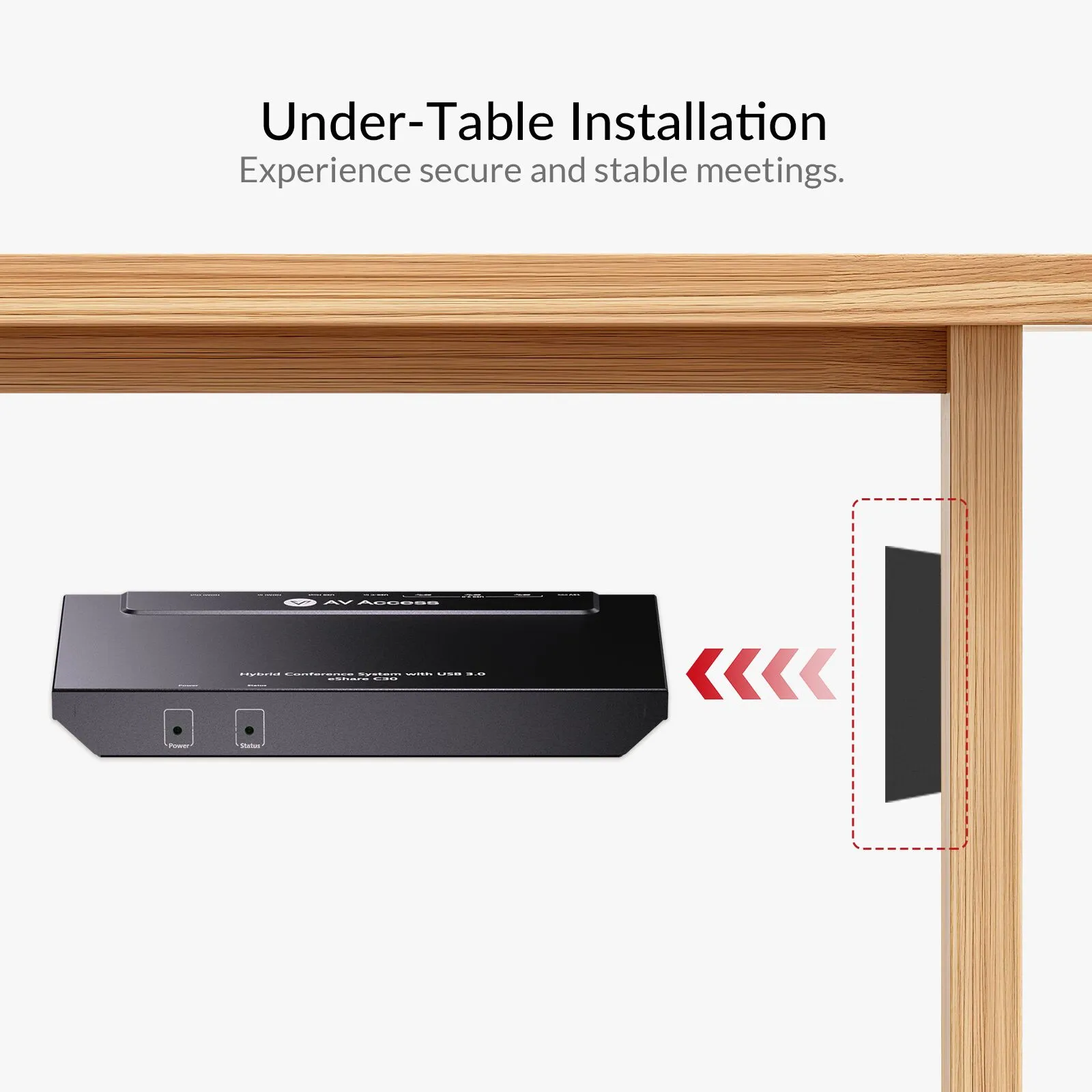

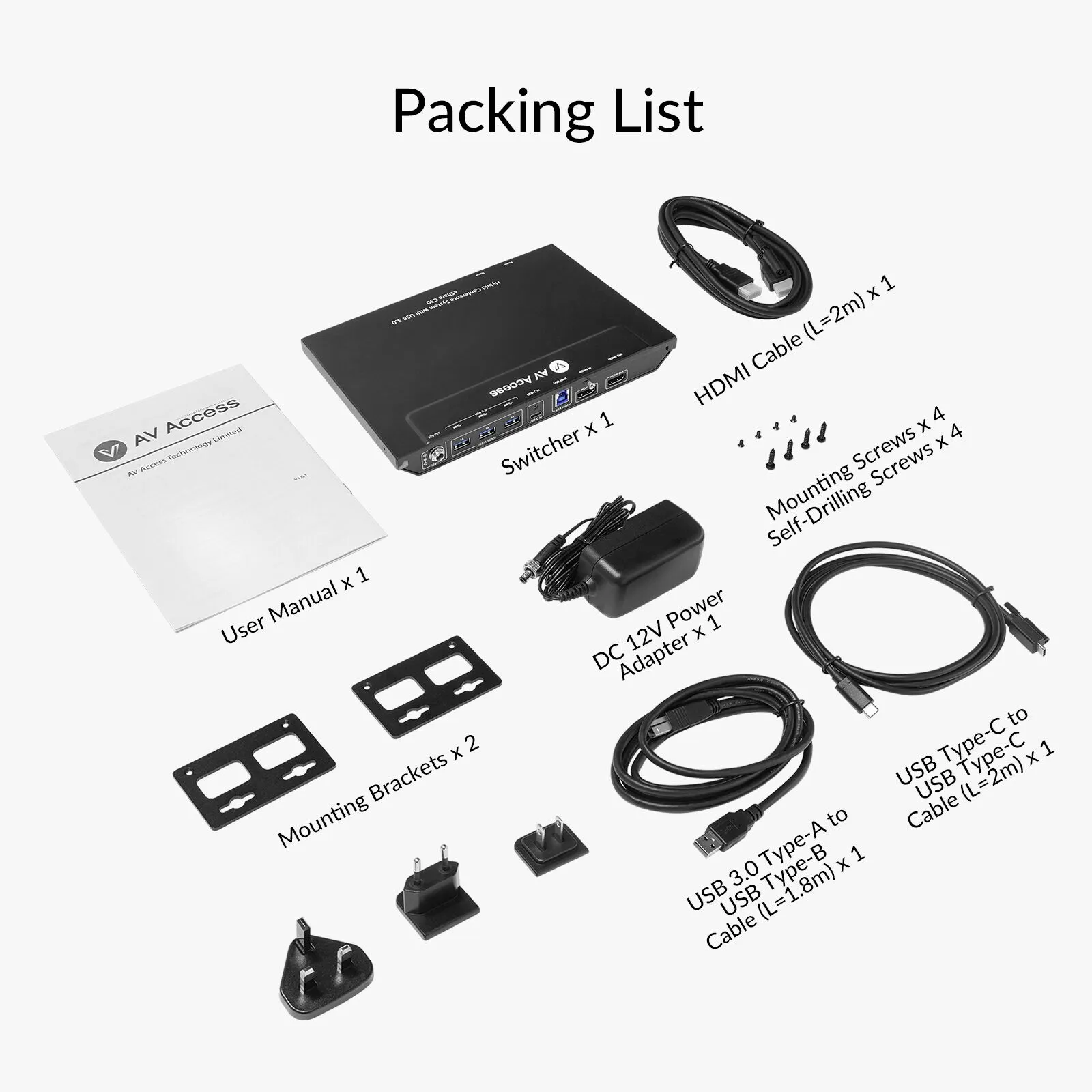

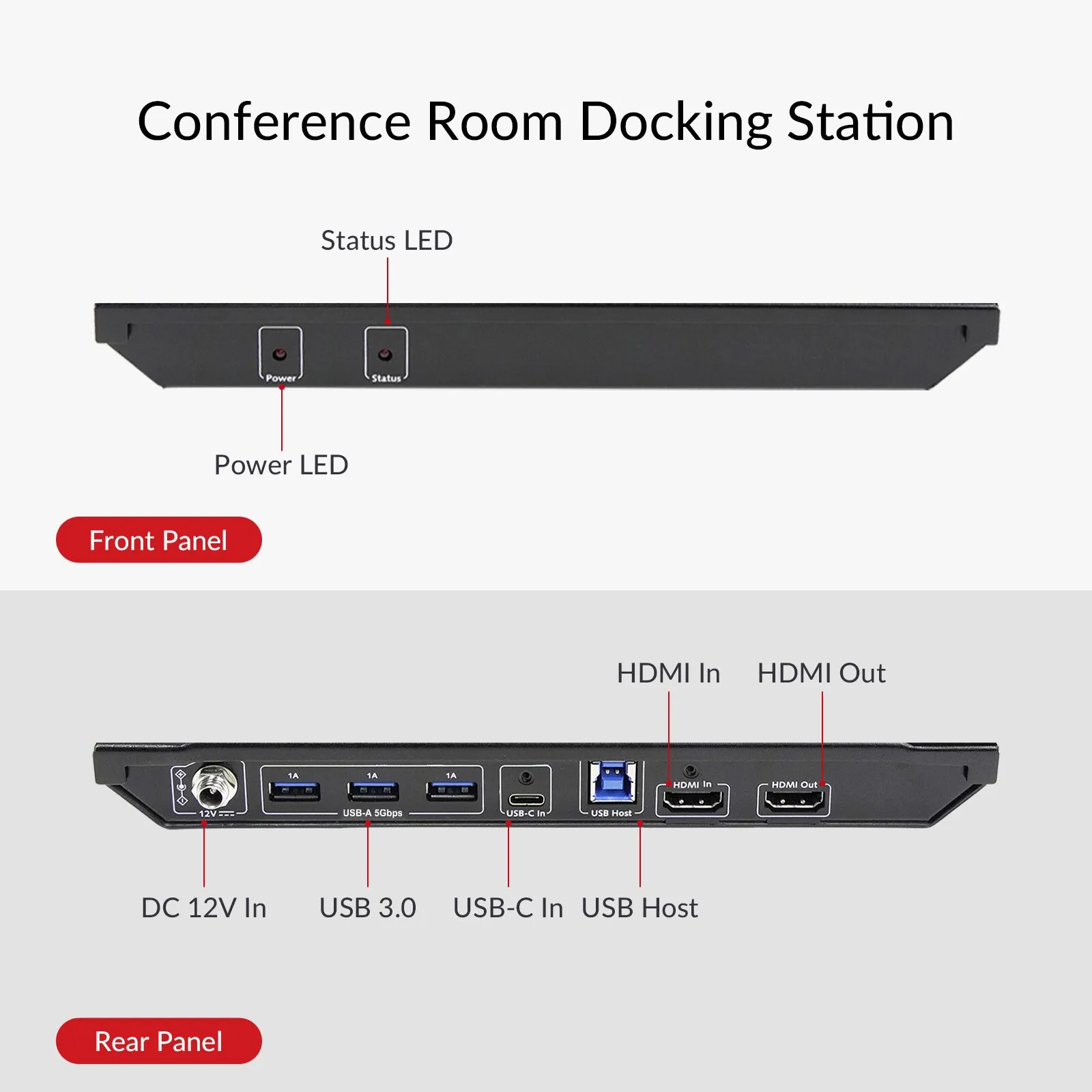

Designed for modern conference rooms, the eShare C30 supports under-table installation with the included mounting brackets and self-drilling screws. Its single-sided cable layout minimizes cable clutter and keeps meeting spaces neat, professional, and easy to manage.

Secure and Reliable Connections

The included lockable USB-C and HDMI cables ensure stable signal transmission and prevent accidental cable disconnections during important meetings.

Intelligent Meeting Automation

The AV ACCESS Conference Docking Station eShare C30 supports HDMI-CEC, enabling automatic display power on/off when devices are connected or disconnected. It also features automatic input switching, instantly detecting new presentation sources without manual intervention.

Key Features

4K@60Hz 4:4:4 ultra-high-definition presentation support
USB-C and HDMI input with true plug-and-play operation
Three USB 3.0 ports for webcams, speakerphones, and USB peripherals
BYOM support for flexible video conferencing
HDMI-CEC auto display power on/off
Automatic source switching
Under-table installation design
Lockable USB-C and HDMI cables included
Single-sided cable management for a cleaner workspace

Video
Input / Output Signal Type	HDMI In/Out: HDMI 2.0 with 4K@60Hz 4:4:4 8bit USB C In: DP alt mode with 2-lane 4K@30Hz/USB 3.0 up to 5Gbps All inputs and output support HDCP 2.2
Input / Output Resolution	HDMI In/Out: VESA: 800 x 600⁸, 1024 x 768⁸, 1280 x 768⁸, 1280 x 800⁸, 1280 x 960⁸, 1280 x 1024⁸, 1360 x 768⁸, 1366 x 768⁸, 1440 x 900⁸, 1600 x 900⁸, 1600 x 1200⁸, 1680 x 1050⁸, 1920 x 1200⁸, 2048 x 1152⁸, 3840 x 2160^2,3,5,6,8, 4096 x 2160^2,3,5,6,8 SMPTE: 1280 x 720P^6,7,8, 1920 x 1080P^6,7,8,9 USB C In: VESA: 800 x 600⁸, 1024 x 768⁸, 1280 x 768⁸, 1280 x 800⁸, 1280 x 960⁸, 1280 x 1024⁸, 1360 x 768⁸, 1366 x 768⁸, 1440 x 900⁸, 1600 x 900⁸, 1600 x 1200⁸, 1680 x 1050⁸, 1920 x 1200⁸, 2048 x 1152⁸, 3840 x 2160^2,3,5, 4096 x 2160^2,3,5 SMPTE: 1280 x 720P^6,7,8, 1920 x 1080P^6,7,8,9 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 120 Hz
General
Operating Temperature	32°F to 113°F (0°C to 45°C)
Storage Temperature	-4°F to 158°F (-20°C to 70°C)
Humidity	10% to 90%, non-condensing
ESD Protection	Human-body Model: ±8kV (Air-gap discharge)/ ±4kV (Contact discharge)
Power Supply	DC 12V 2A
Power Consumption	18.57W (full-loaded) 7.54W (without USB)
Dimensions (W x H x D)	230mmx25mmx142.6mm/9.06”x0.98”x5.61”
Product Weight	0.76kg/1.68lbs
