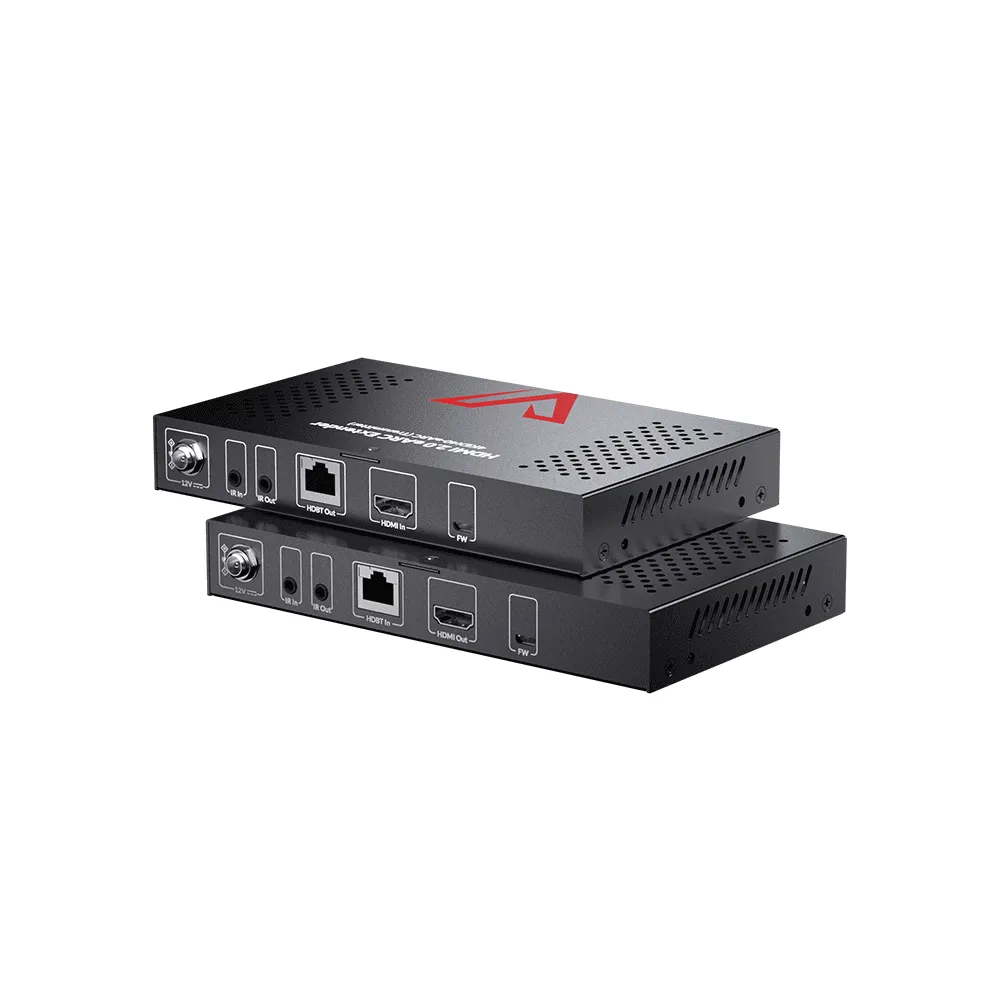

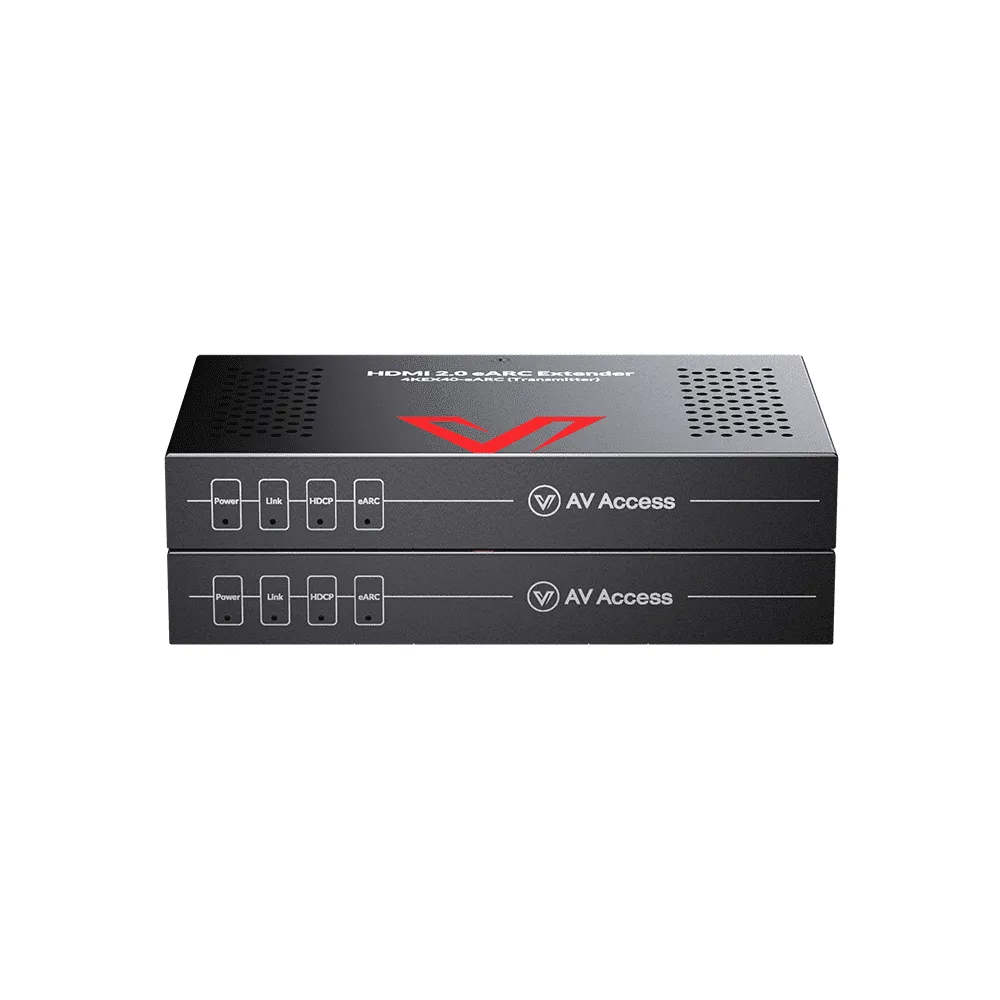

The AV ACCESS eARC Extender 4KEX40-eARC is a next-generation HDBaseT 3.0 HDMI extender built for premium home theater installations. It transmits uncompressed 4K@60Hz (4:4:4) HDMI signals up to 40m (131ft) over a single Cat6a/7 cable while supporting advanced HDR formats, eARC, ARC, and immersive surround sound. Designed with HDMI 2.0 and HDCP 2.3 compatibility, this extender delivers exceptional video quality and crystal-clear audio for modern entertainment systems.
Powered by the latest HDBaseT 3.0 technology, the AV ACCESS eARC Extender 4KEX40-eARC also supports bi-directional IR, CEC pass-through, and bi-directional PoC, making installation simple while providing flexible device control and reliable long-distance performance.
Key Features
- Extend uncompressed 4K@60Hz (4:4:4) HDMI signals up to 40m (131ft) over a single Cat6a/7 cable.
- Built with HDBaseT 3.0 technology for stable, zero-compromise audio and video transmission.
- Fully compatible with HDMI 2.0 and HDCP 2.3 standards.
- Supports advanced HDR formats, including HDR10, HDR10+, HLG, and Dolby Vision (4K@60Hz).
- Features eARC for high-bitrate audio formats such as Dolby Atmos and DTS.
- Backward compatible with ARC, supporting up to 5.1-channel surround sound.
- Includes bi-directional IR and CEC pass-through for convenient remote control from either the source or display location.
- Supports bi-directional PoC, allowing a single power adapter to power both the transmitter and receiver.
- Plug-and-play installation with no software or driver required.
- Compact, space-saving design with integrated ventilation for efficient heat dissipation.
