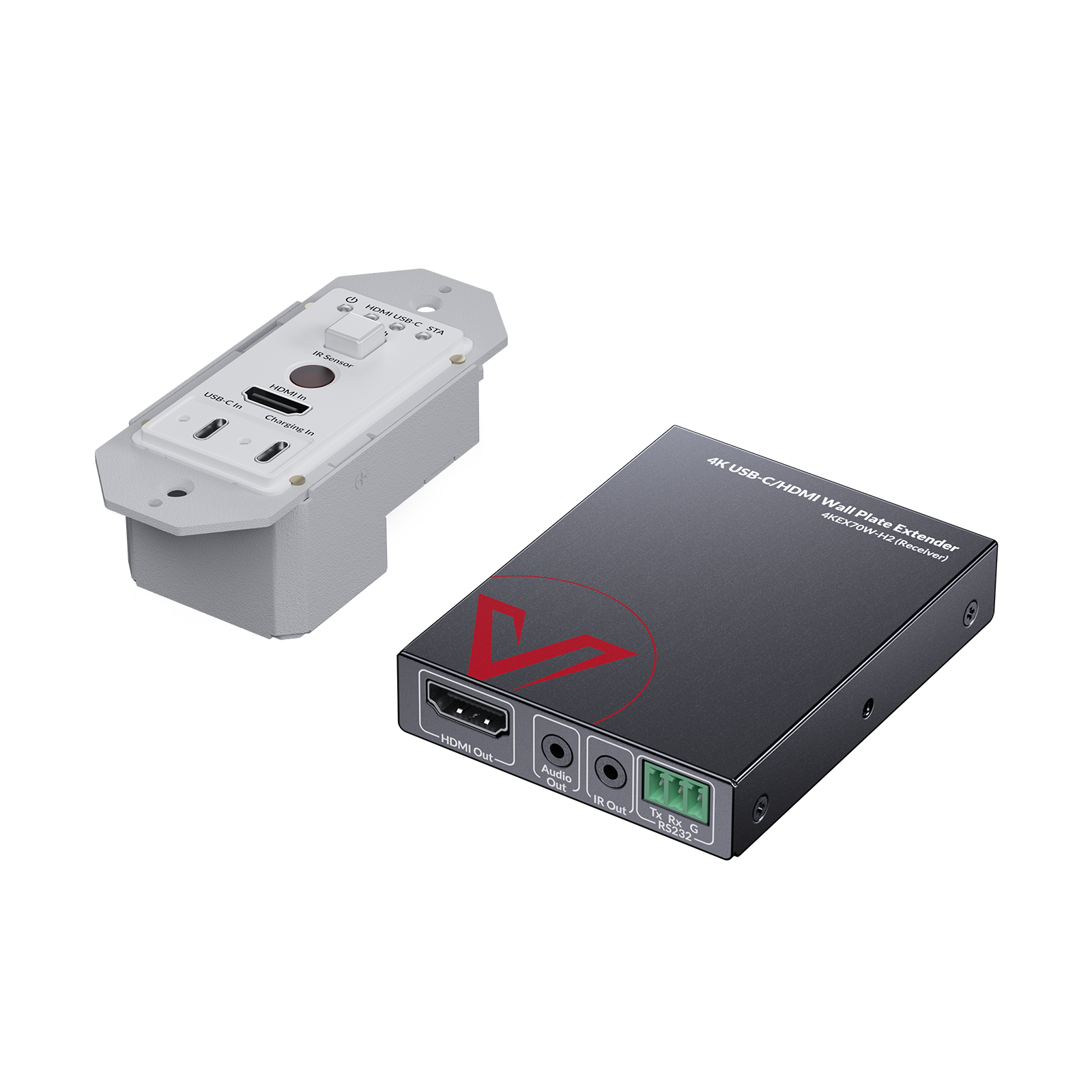

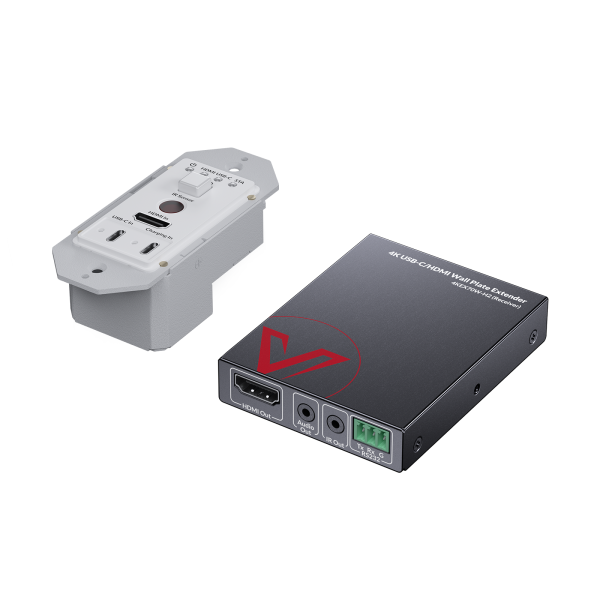

The AV ACCESS Wall Plate Extender 4KEX70W-H2 is a professional AV solution designed for modern classrooms, meeting rooms, and collaborative workspaces. Featuring dual HDMI and USB-C inputs, it extends 4K@60Hz video, audio, and control signals up to 70 meters (230ft) over a single Cat6/6A/7 cable. With support for HDMI 2.0, HDCP 2.3, and ultrawide display resolutions, it delivers exceptional performance for interactive presentations and multimedia applications.
The AV ACCESS Wall Plate Extender 4KEX70W-H2 also integrates 100W USB-C Power Delivery, bi-directional PoC, RS-232 control, EDID management, audio de-embedding, and one-way IR, providing a complete installation-ready solution while minimizing cable clutter.
Key Features

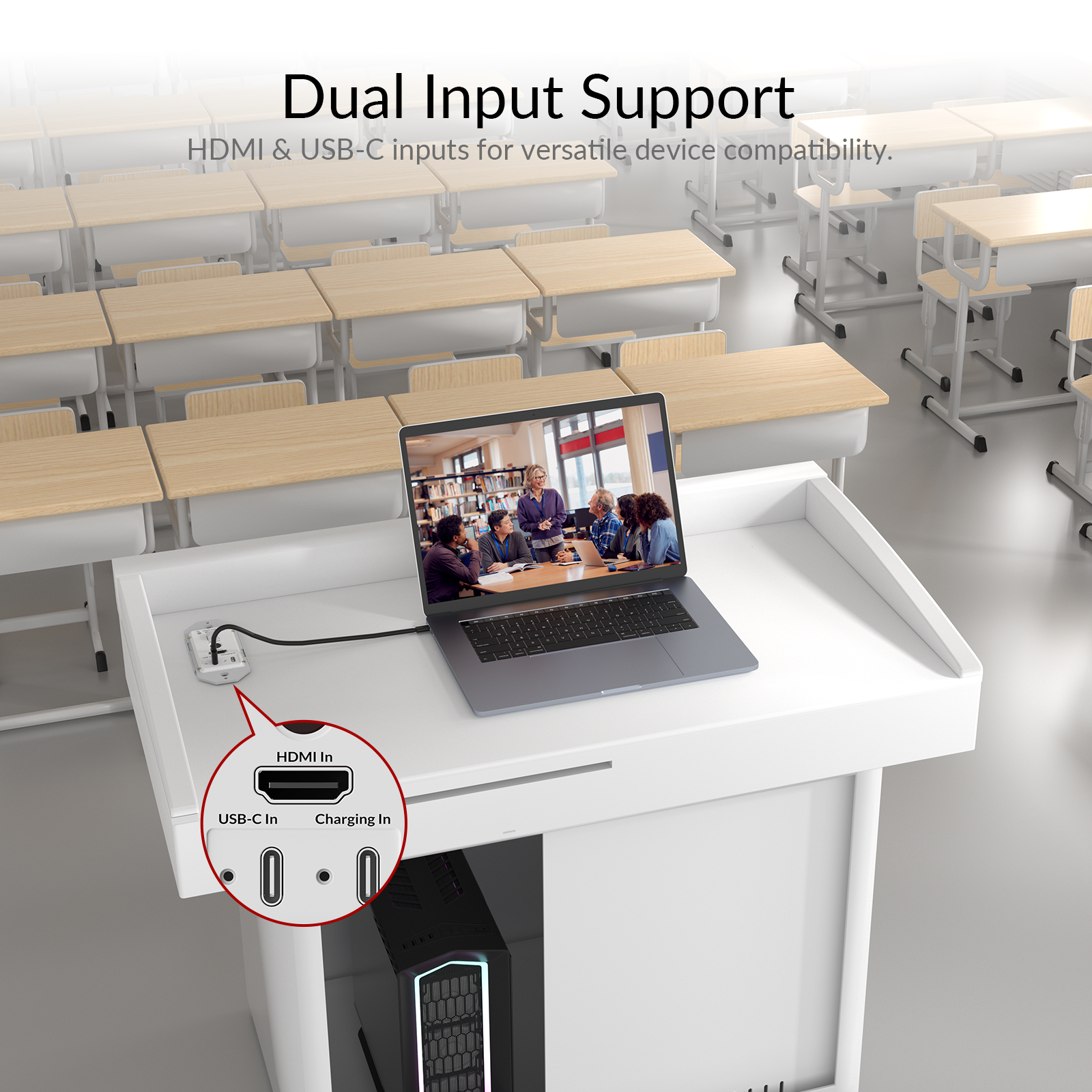

- Dual USB-C and HDMI inputs for seamless connection of laptops and HDMI source devices.

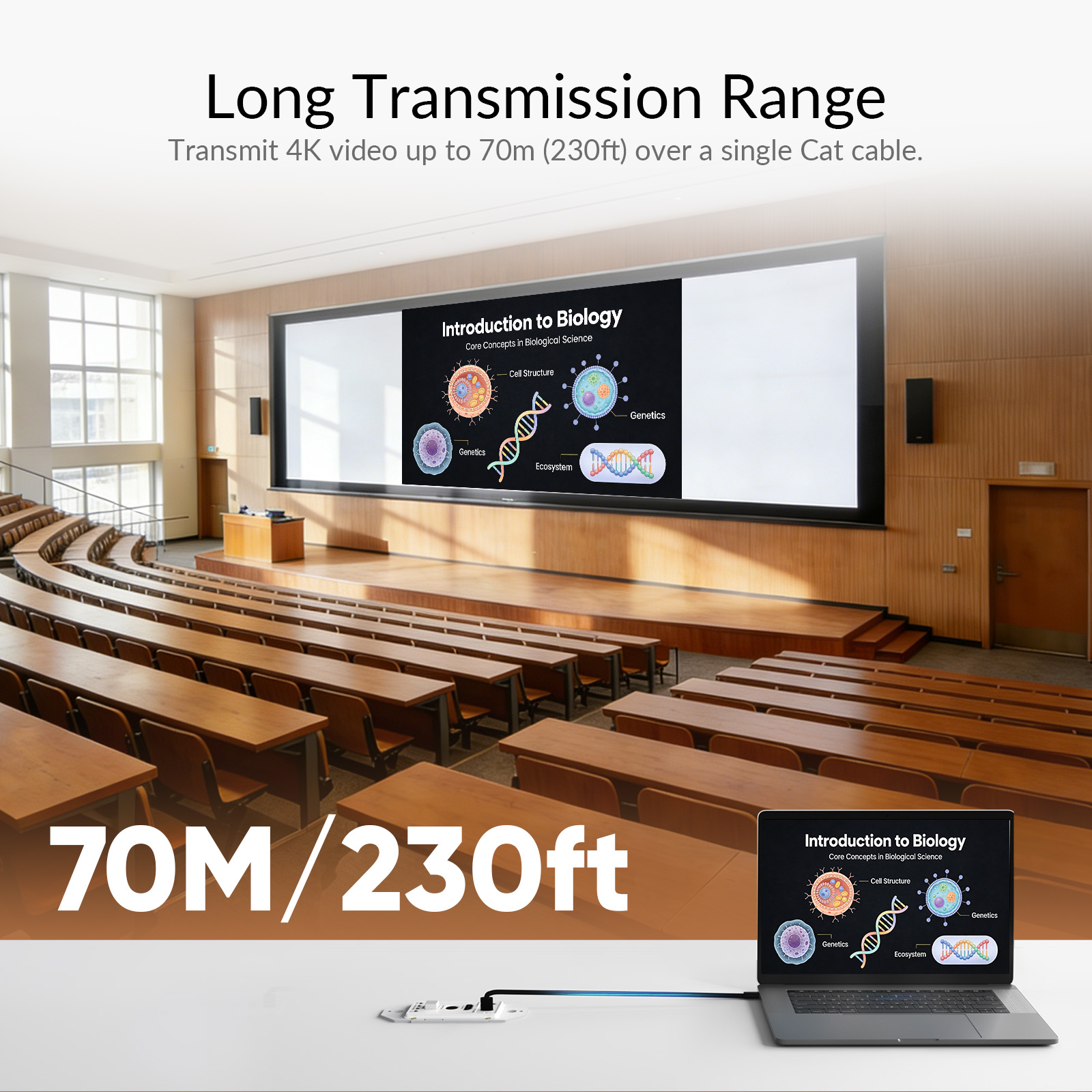

- Extends 4K@60Hz HDMI 2.0 signals up to 70m (230ft) over a single Cat6/6A/7 cable.
- Supports HDCP 2.3 for secure playback of protected 4K content.

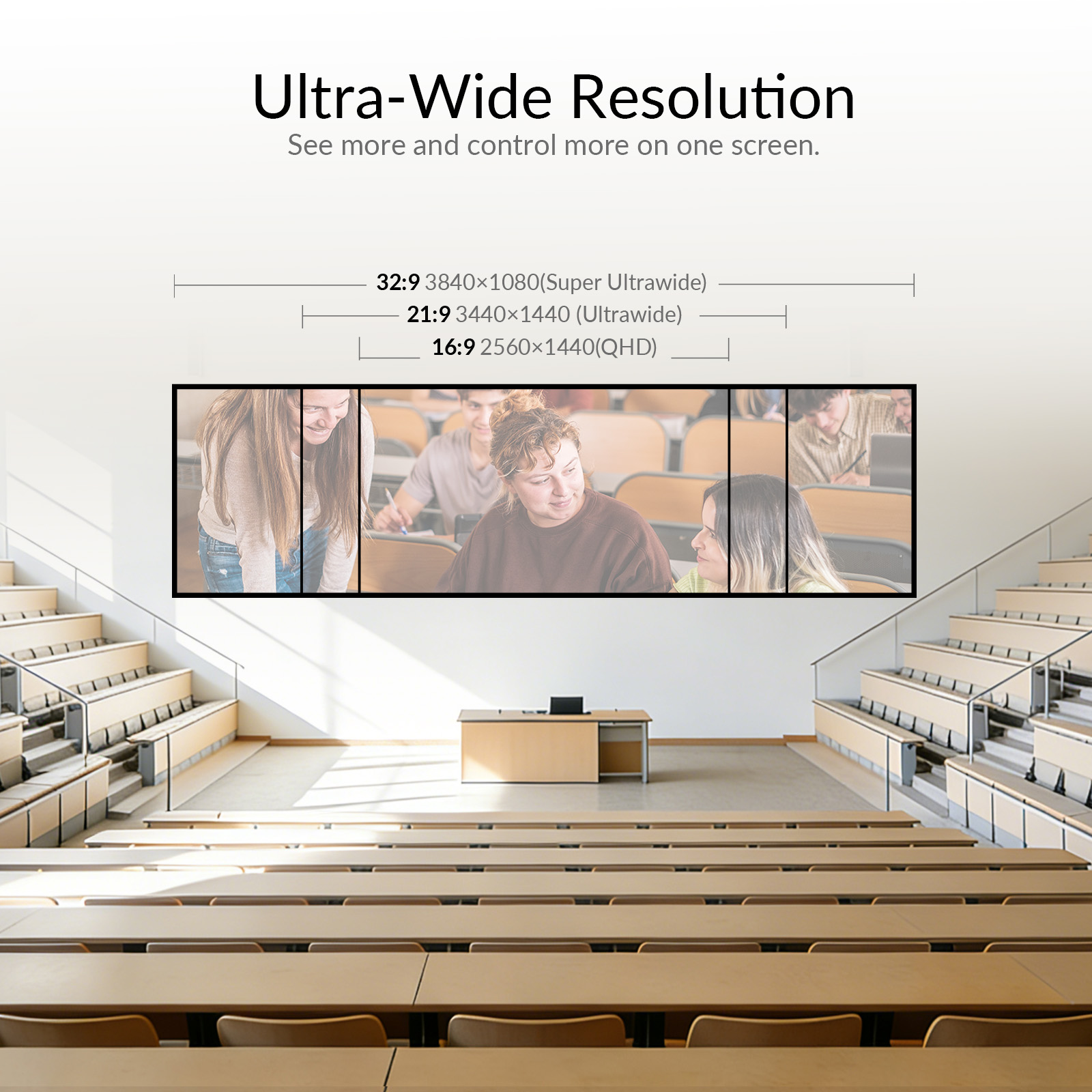

- Compatible with 21:9 and 32:9 ultrawide resolutions, including 3440×1440 and 3840×1080.

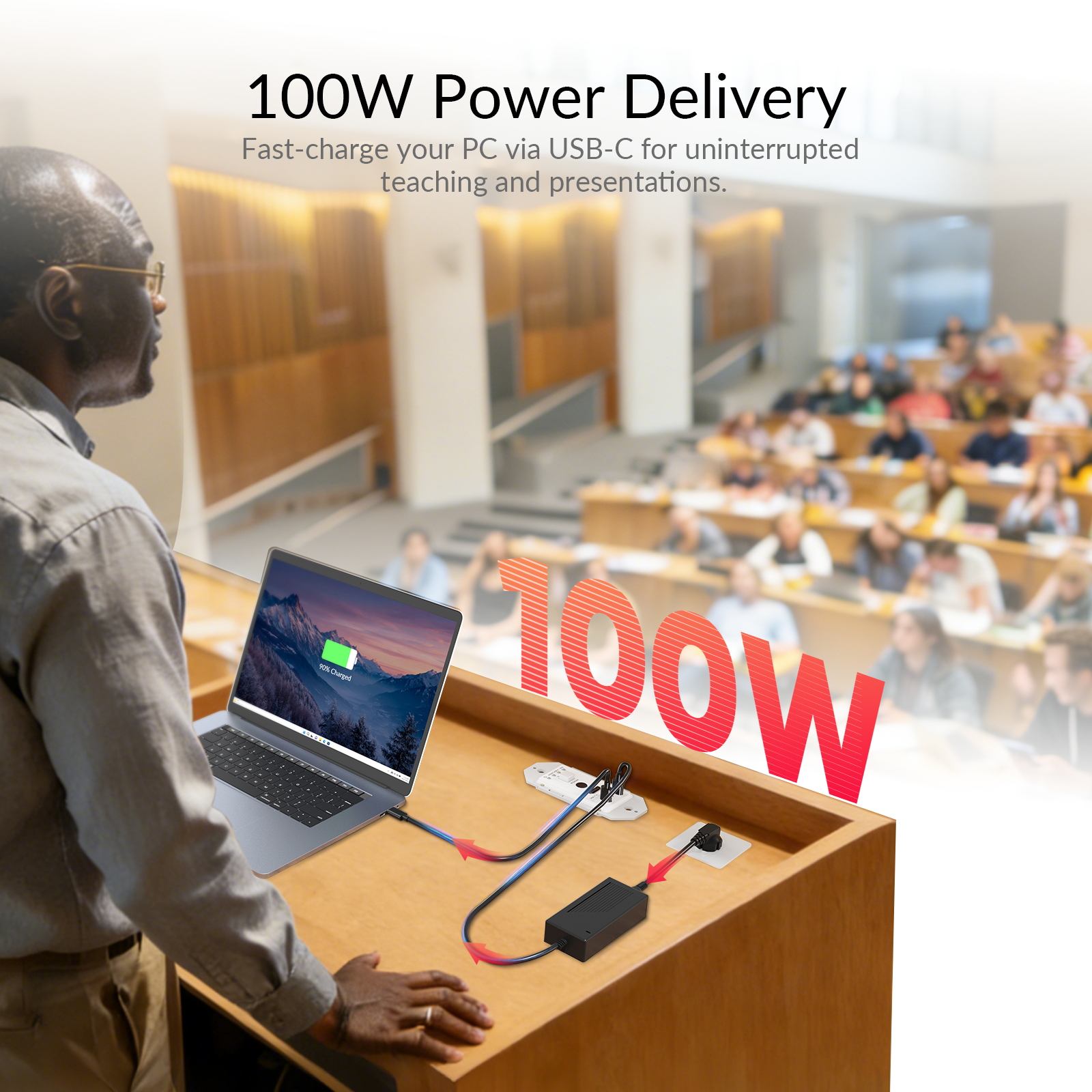

- Provides up to 100W USB-C Power Delivery to charge connected laptops during presentations.
- Supports automatic and manual input switching between HDMI and USB-C sources.

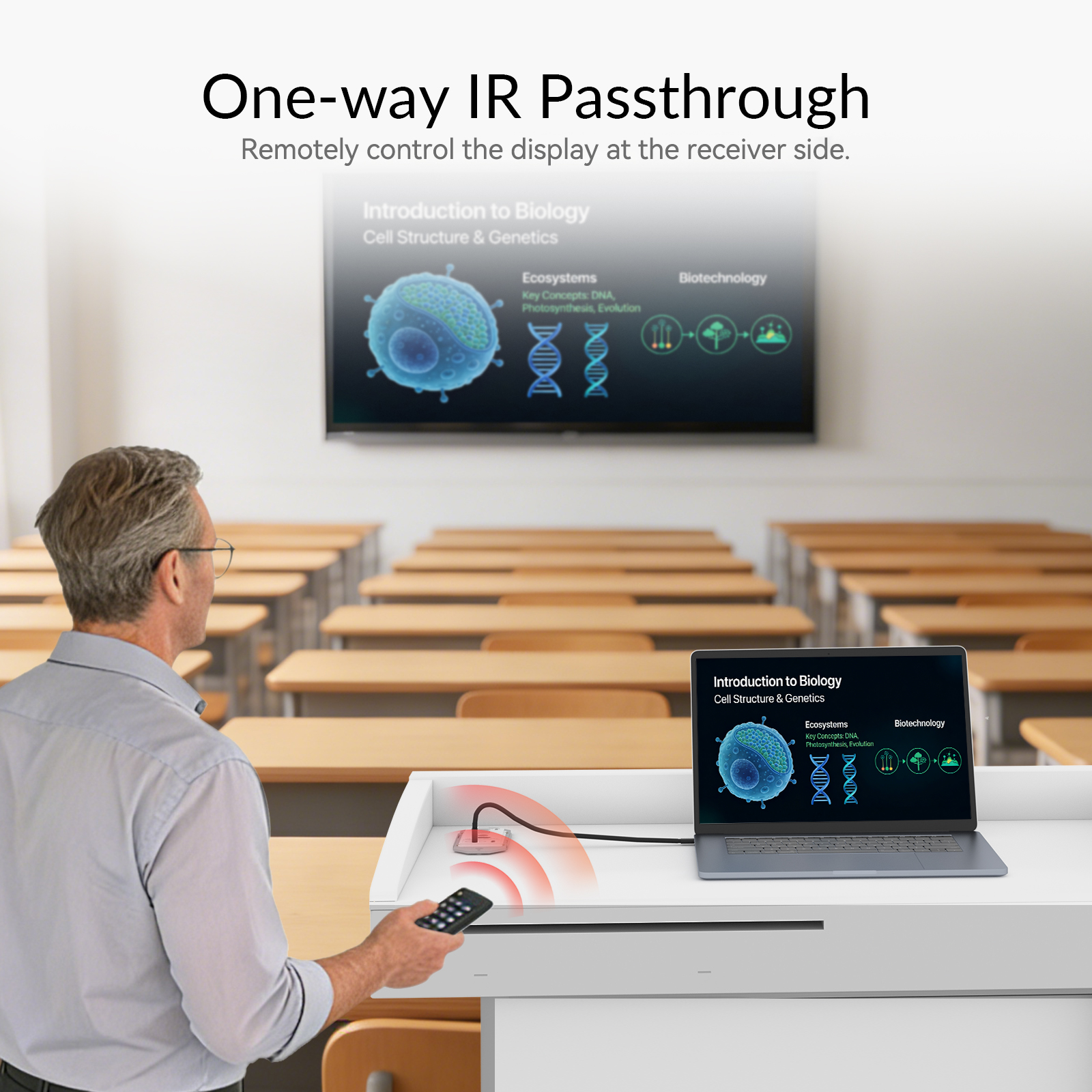

- Includes one-way IR for convenient display control from the transmitter side.
- Features bi-directional RS-232 for remote control of displays, projectors, and serial devices.
- Supports bi-directional PoC, allowing one power adapter to power both transmitter and receiver.
- Built-in EDID management optimizes video resolution, refresh rate, and audio compatibility.
- Audio de-embedding enables connection to external speakers, amplifiers, or audio systems.
