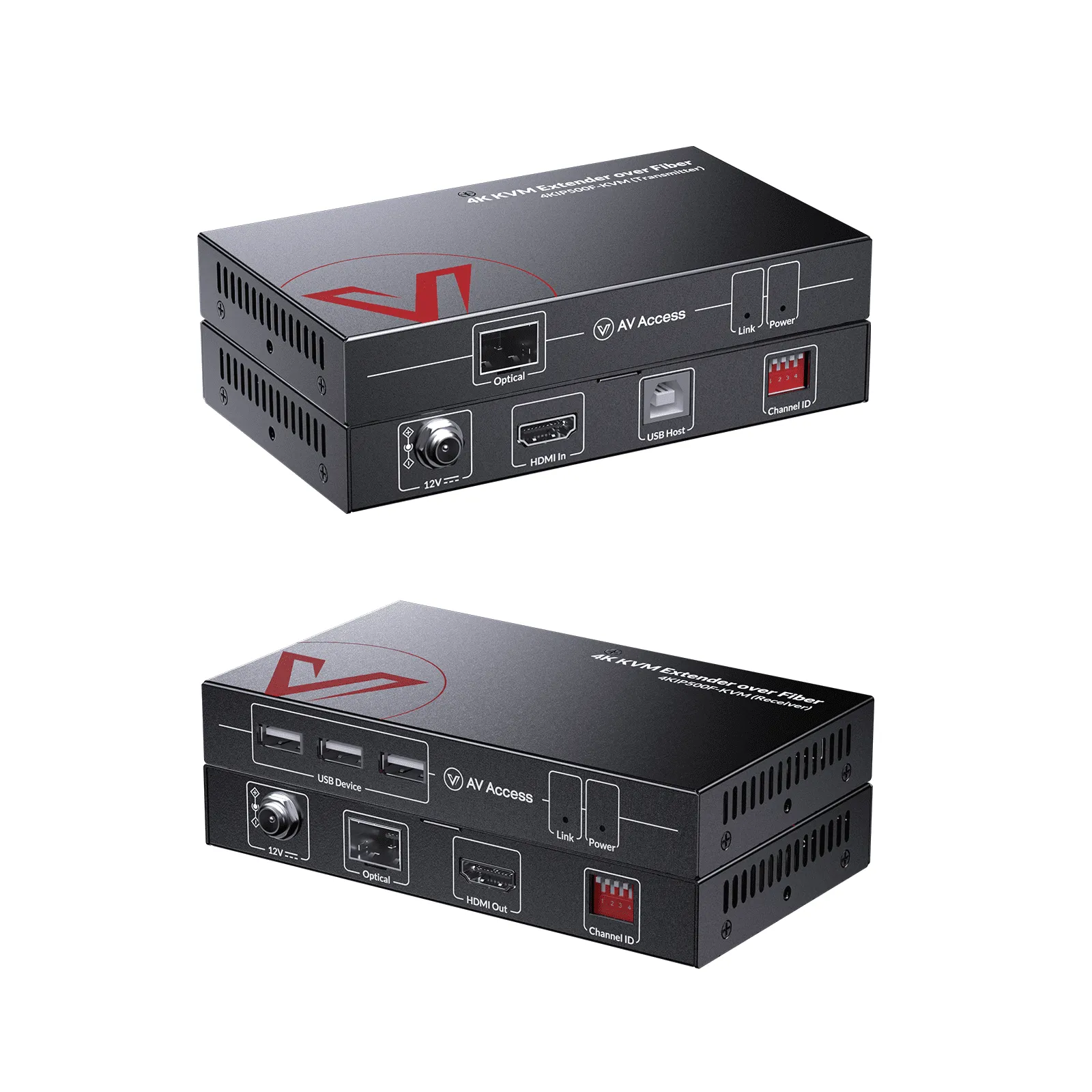

Fiber KVM Extender over IP, up to 4K, 550m/1800ft, Zero Latency, 3x USB 2.0 Ports, Ideal for Remote PC Control in Server Room

4KIP500F-KVM

Description
Specifications

The AV ACCESS Fiber KVM Extender 4KIP500F-KVM is a professional-grade HDMI KVM extender designed for long-distance, high-performance signal transmission. Supporting 4K@30Hz video over fiber optic cable, it delivers crystal-clear visuals with zero latency across distances of up to 550 meters (1,800 feet) using multimode fiber.

Built for mission-critical environments, this fiber KVM extender combines exceptional transmission stability, electromagnetic interference resistance, and seamless remote computer control. It also supports USB 2.0 peripherals and USB camera transmission, making it ideal for server rooms, data centers, healthcare facilities, educational institutions, and industrial control systems.

Key Features

Transmits HDMI video up to 4K@30Hz over fiber optic cable.

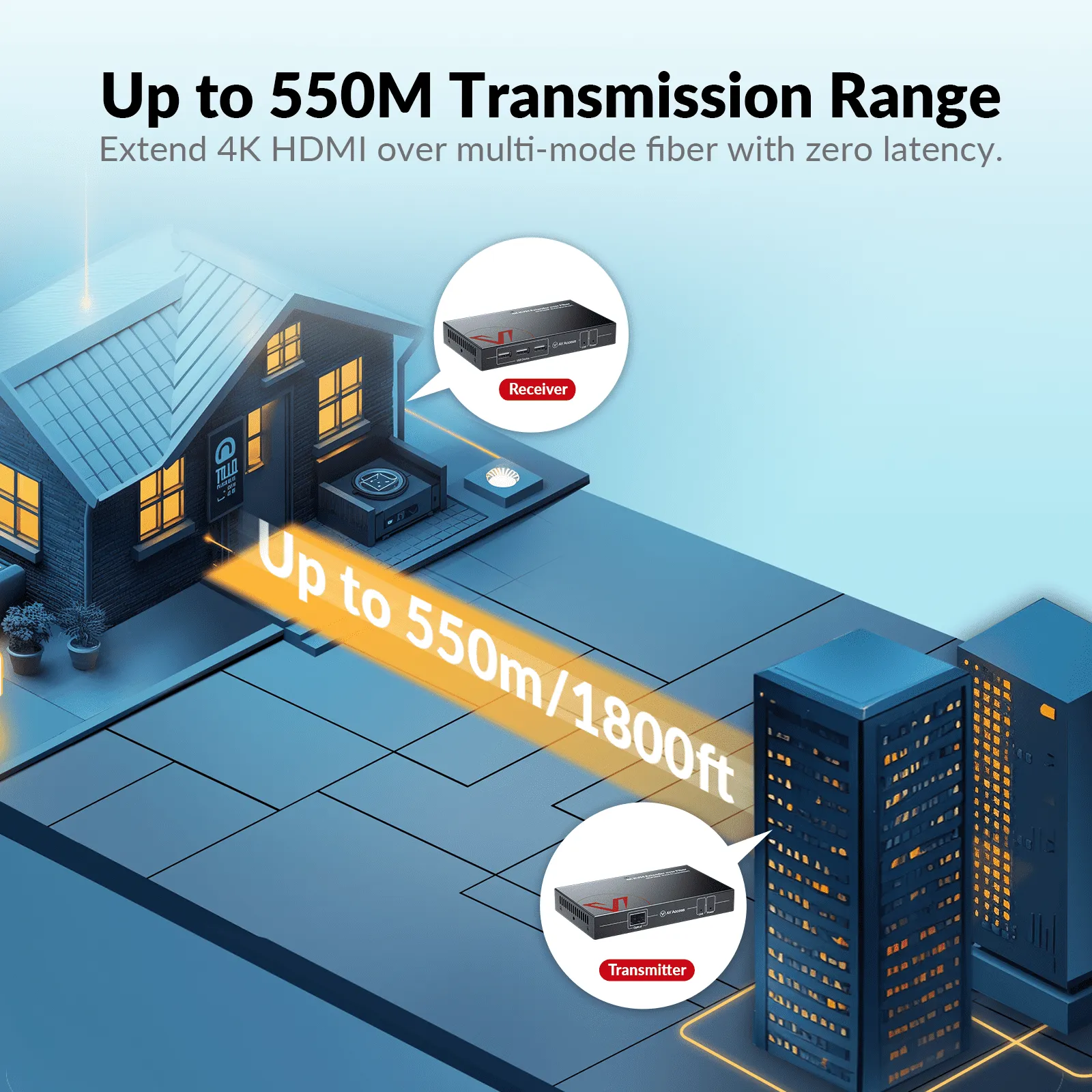

Supports transmission distances of up to 550m (1,800ft) using multimode fiber.
Achieves zero-latency signal transmission for real-time operation.
Offers excellent resistance to electromagnetic interference (EMI).
Supports transmission distances of up to 10km with compatible single-mode optical modules.
Includes three USB 2.0 ports for keyboard, mouse, storage devices, and USB cameras.
Delivers USB 2.0 data transfer speeds of up to 480Mbps.
Provides smooth and reliable remote PC control for professional applications.

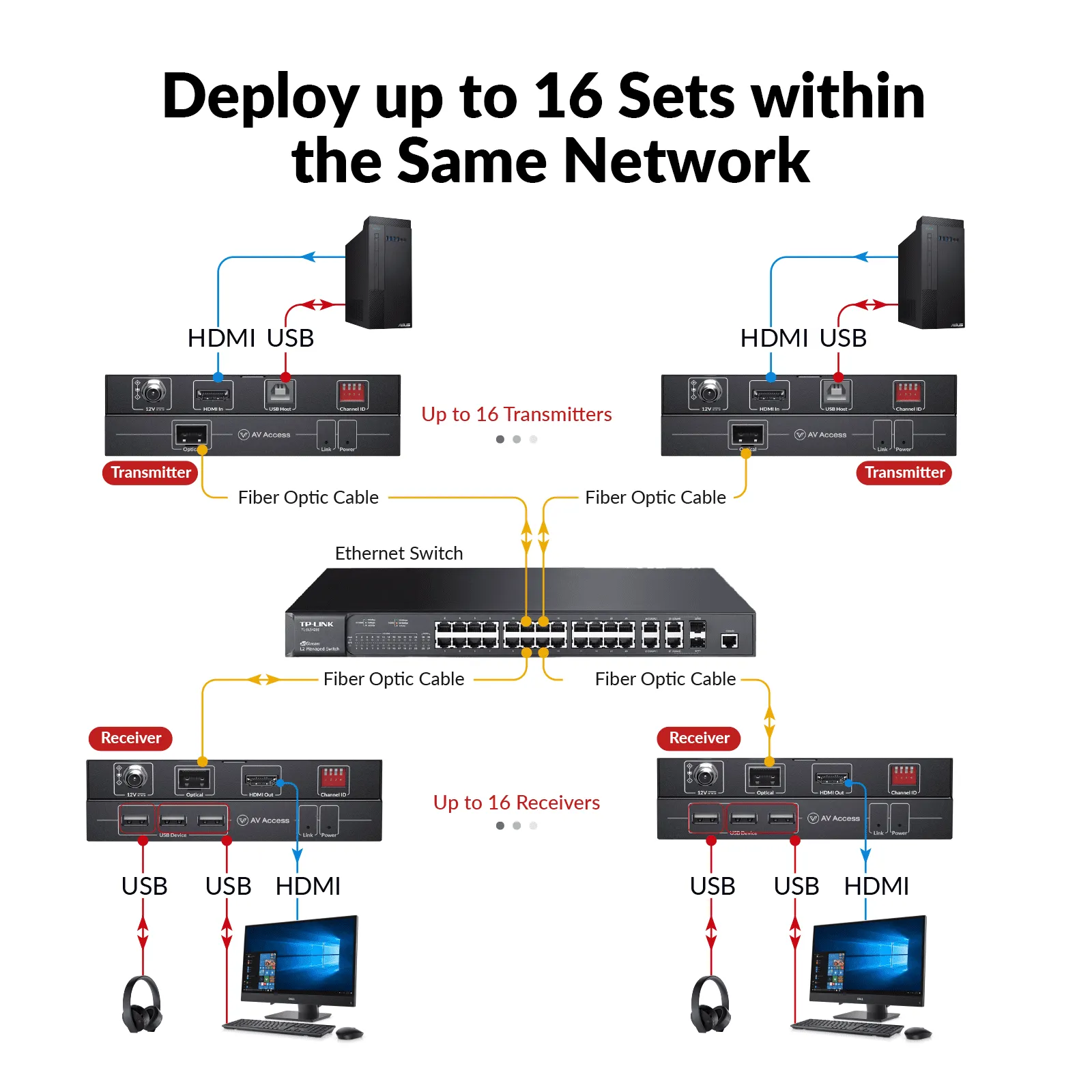

Easy to integrate into existing AV-over-IP and fiber network infrastructures.

Transmitter

Technical

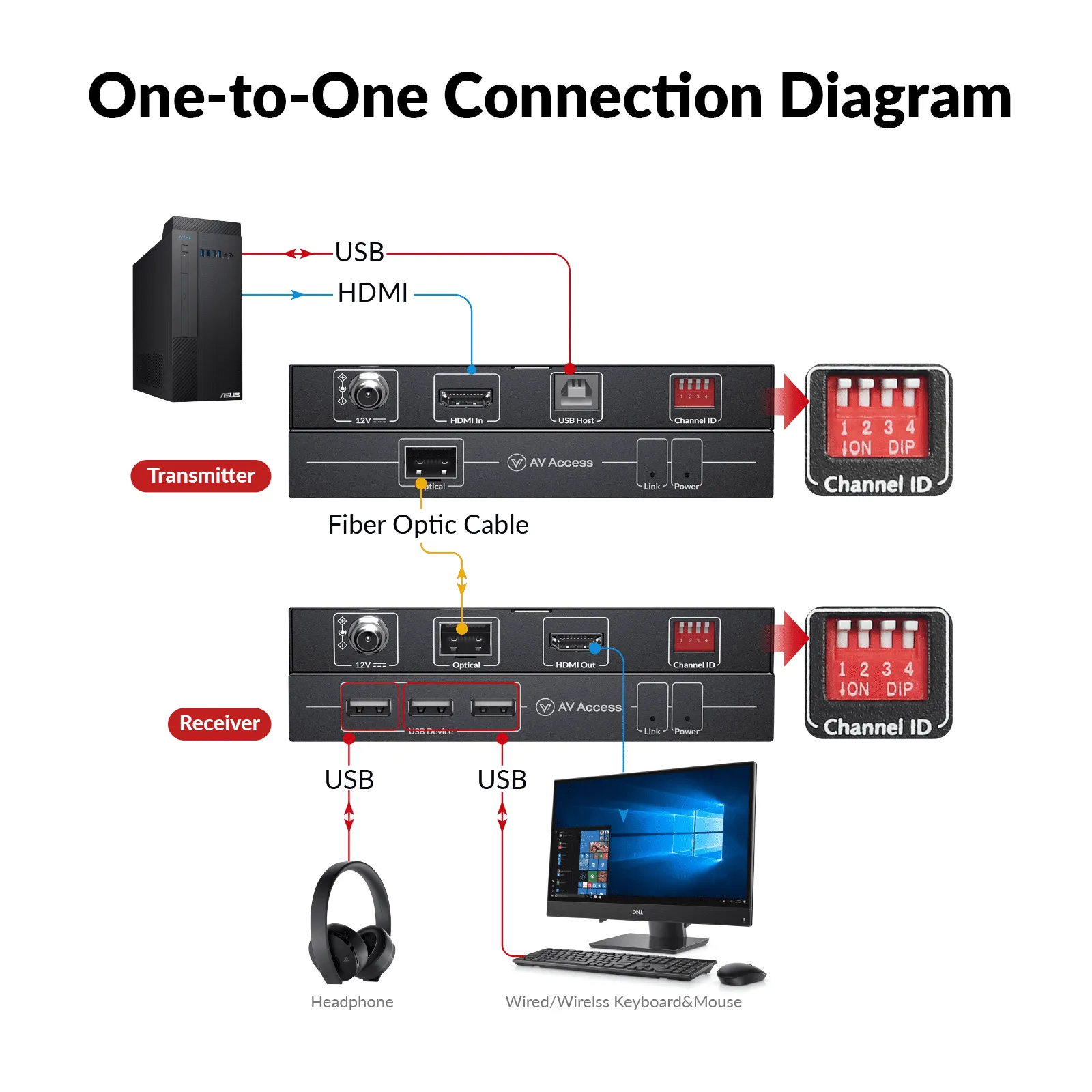

Input/Output	1 x HDMI IN (19-pin female HDMI Type-A), 1 x USB HOST (female USB Type-B), 1 x 4-Pin DIP Switch, 1 x DC 12V connector, 1 x Optical (1Gbps MM SFP module)
Input Signal Type	HDMI 1.4b
Input Resolutions Supported	640×480⁸, 800×600^8,10, 1024×768^8,10, 1280×720^6,7,8,9,10, 1280×768^8,10, 1280×800^8,10, 1280×960^8,10, 1280×1024^8,10, 1360×768⁸, 1366×768⁸, 1440×900^8,10, 1600×900⁸, 1600×1200⁸, 1680×1050^8,10, 1920×1080^{1,2,3,4,5,6,7,8,9,10}, 1920×1200⁸, 3840x2160P^2,3,5, 4096x2160P^2,3,5 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 100 Hz, 10 = at 120 Hz
Input Audio Format Supported	PCM 2.0/2.1/5.1/7.1, Dolby Digital 5.1ch, Dolby Digital Plus, Dolby TrueHD, DTS 5.1ch, DTS-HD High Resolution Audio, DTS-HD Master Audio
Output Signal Type	Compressed IP streams
Maximum Data Rate	9 Gbps
Maximum Pixel Clock	300 MHz
Fiber Optic Connector Type	LC to LC
Fiber Optic Type	Duplex Multi-mode 850nm OM4 Fiber
Maximum Transmission Distance	550m/1804ft

General
Operating Temperature	0 to 45°C (32 to 113 °F)
Storage Temperature	-20 to 70°C (-4 to 158 °F)
Humidity	10% to 90%, non-condensing
ESD Protection	Human Body Model: ±8kV (air-gap discharge)/±4kV (contact discharge)
Power Supply	DC 12V 1A
Power Consumption	2W (Max)
Unit Dimensions (W x H x D)	140mm x 21mm x 80mm / 5.51’’ x 0.83’’ x 3.15’’
Unit Net Weight (without accessories)	0.25kg/0.55lb

Receiver

Technical

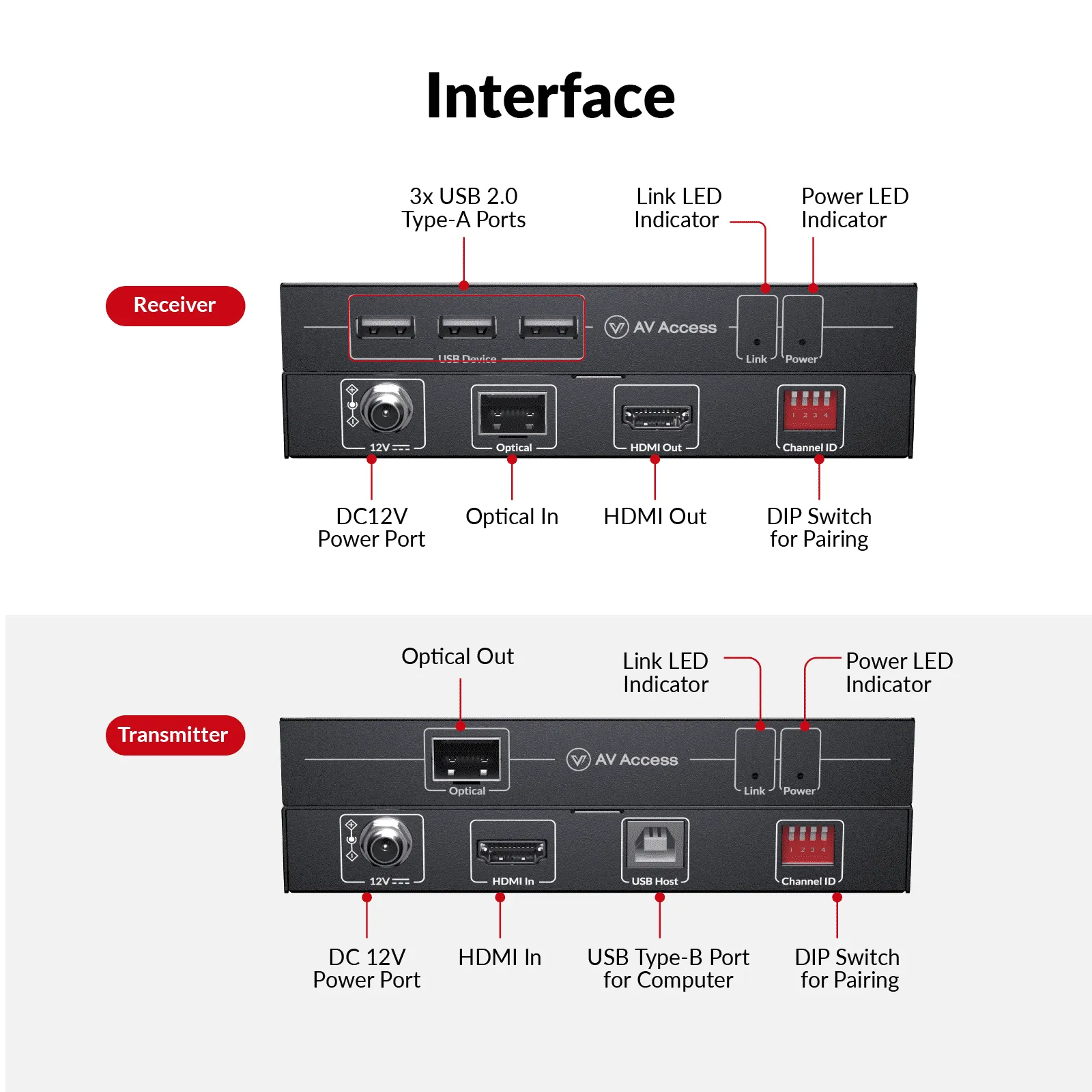

Input/Output	1 x Optical (1Gbps MM SFP module), 1 x HDMI OUT (19-pin female HDMI Type-A), 3 x USB DEVICE (female USB Type-A), 1 x 4-Pin DIP Switch, 1 x DC 12V connector
Output Signal Type	HDMI 1.4b
Output Resolutions Supported	640×480⁸, 800×600^8,10, 1024×768^8,10, 1280×720^6,7,8,9,10, 1280×768^8,10, 1280×800^8,10, 1280×960^8,10, 1280×1024^8,10, 1360×768⁸, 1366×768⁸, 1440×900^8,10, 1600×900⁸, 1600×1200⁸,1680×1050^8,10, 1920×1080^{1,2,3,4,5,6,7,8,9,10}, 1920×1200⁸, 3840x2160P^2,3,5, 4096x2160P^2,3,5 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 100 Hz, 10 = at 120 Hz
Output Audio Format Supported	PCM 2.0/2.1/5.1/7.1, Dolby Digital 5.1ch, Dolby Digital Plus, Dolby TrueHD, DTS 5.1ch, DTS-HD High Resolution Audio, DTS-HD Master Audio
Maximum Data Rate	9 Gbps
Maximum Pixel Clock	300 MHz
Fiber Optic Connector Type	LC to LC
Fiber Optic Type	Duplex Multi-mode 850nm OM4 Fiber
Transmission Distance	550m/1804ft
USB Consumption	Recommended no more than 0.5A per USB port

General
Operating Temperature	0 to 45°C (32 to 113 °F)
Storage Temperature	-20 to 70°C (-4 to 158 °F)
Humidity	10% to 90%, non-condensing
ESD Protection	Human Body Model: ±8kV (air-gap discharge)/±4kV (contact discharge)
Power Supply	DC 12V 1A
Power Consumption	Max: 1.6W (USB Consumption not included)
Unit Dimensions (W x H x D)	140mm x 21mm x 80mm / 5.51’’ x 0.83’’ x 3.15’’
Unit Net Weight (without accessories)	0.25kg/0.55lb
