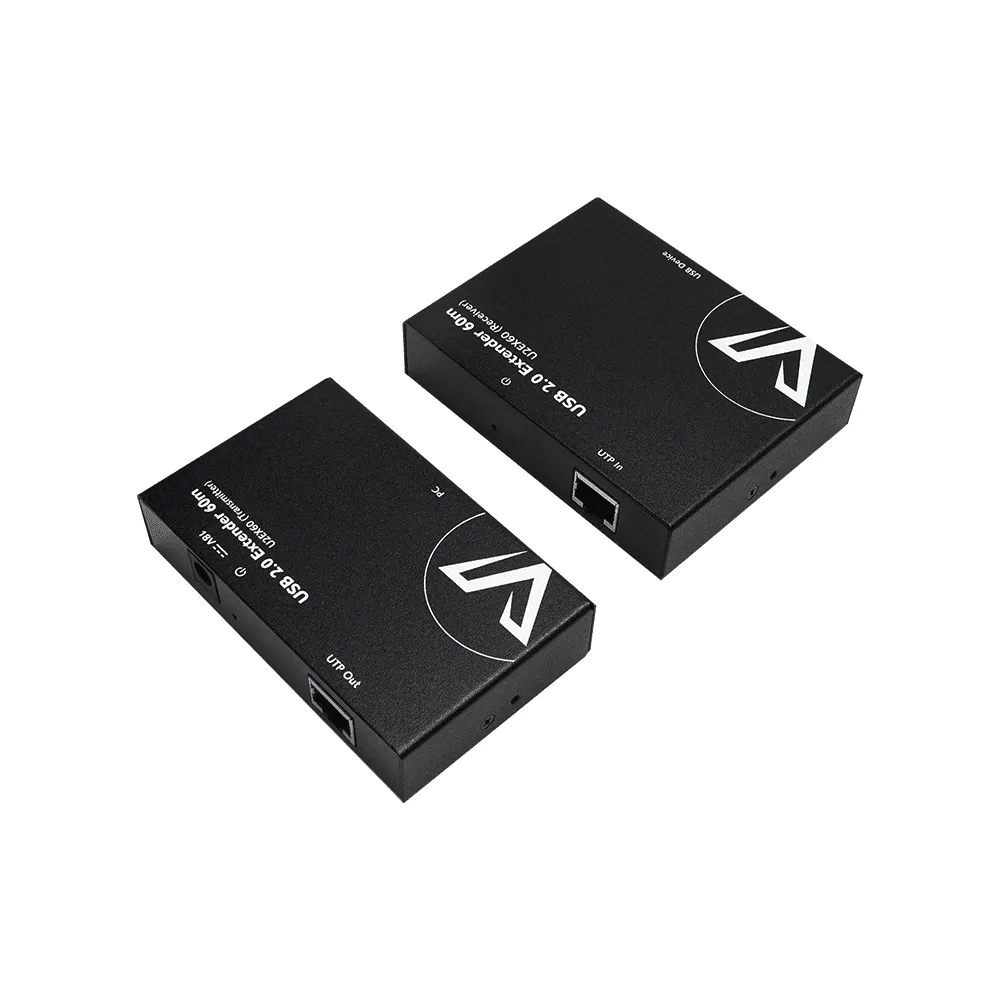

USB Extender over Cat Cable w/ PoC, USB 2.0 up to 60m/196ft, 4x USB2.0 Port, Zero Latency, Ideal for Home Office, Gaming & Surveillance

U2EX60

The AV ACCESS USB Extender U2EX60 is a high-performance USB extension solution that delivers reliable USB 2.0 transmission up to 60m (196ft) over a single CAT5e, CAT6, CAT6a, or CAT7 cable. Designed with One-Way Power over Cable (PoC) technology, this extender requires only one power adapter at the transmitter, simplifying installation while ensuring stable operation for both units.

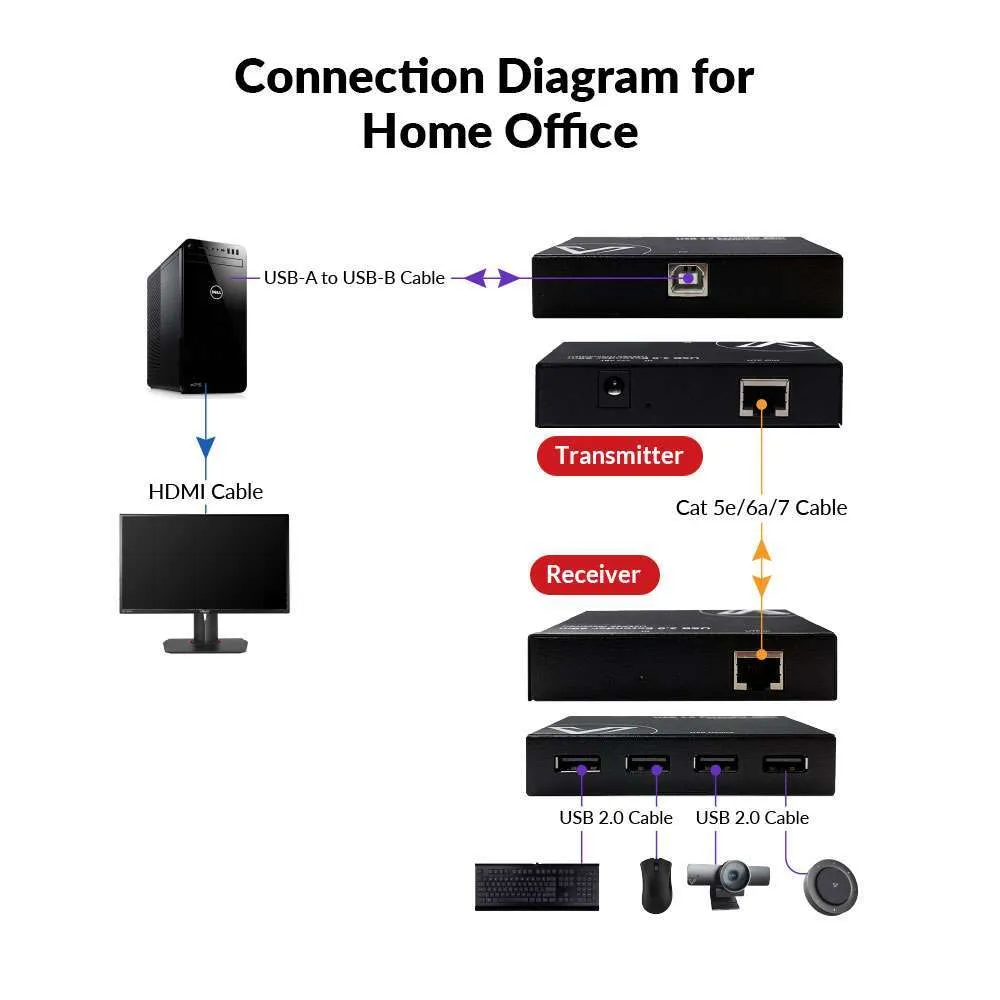

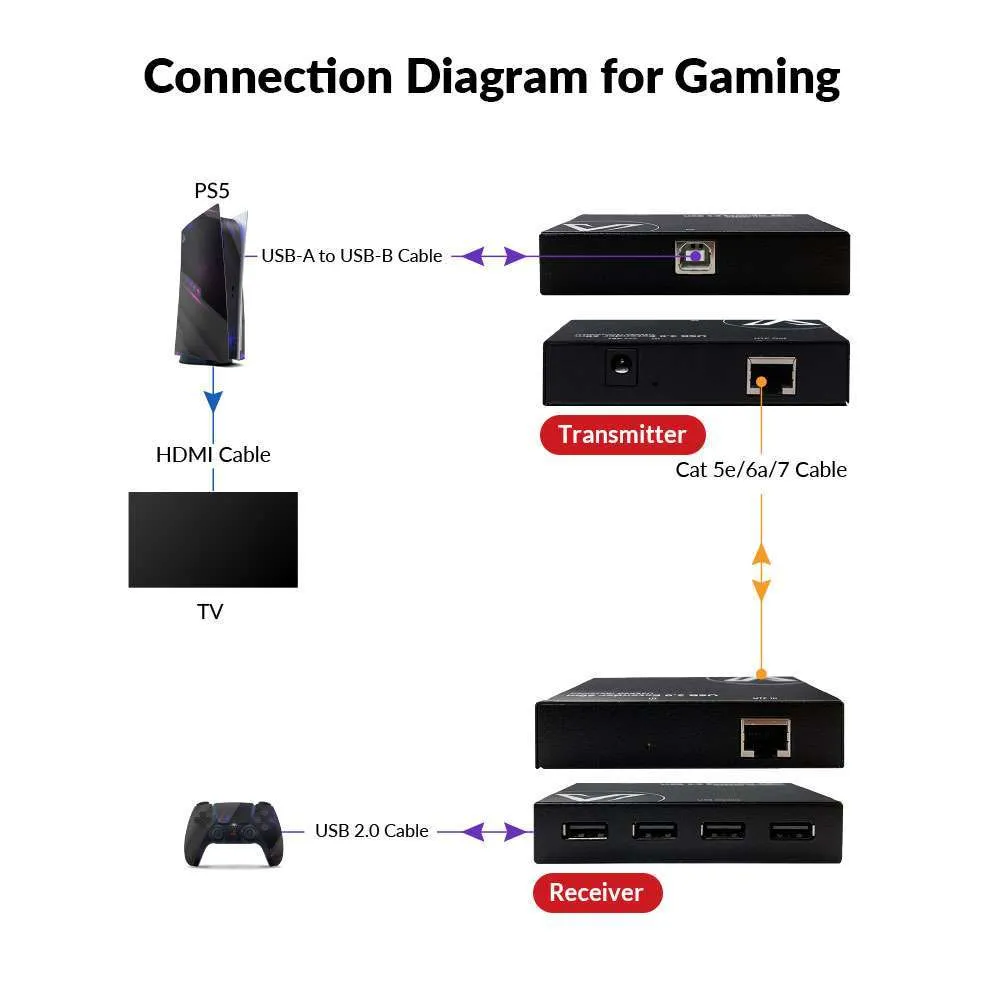

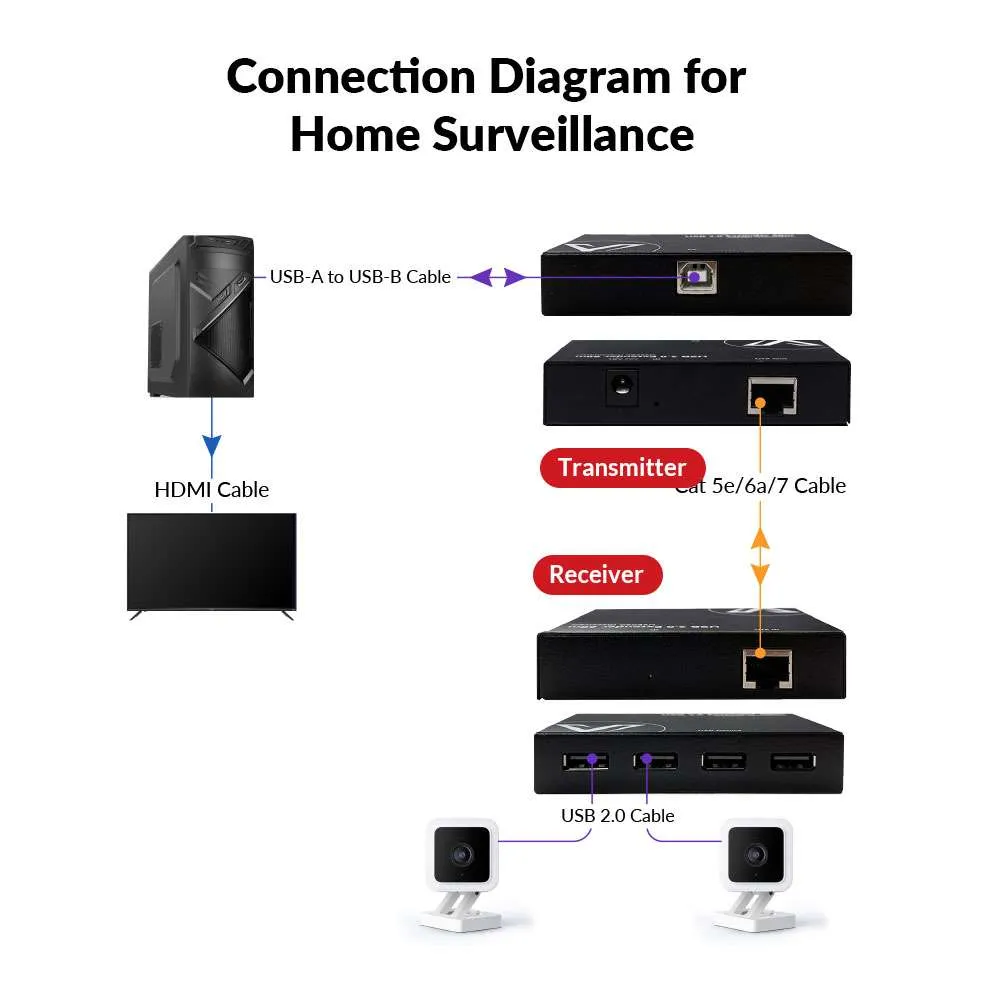

Supporting up to four USB 2.0 peripherals simultaneously, the AV ACCESS USB Extender U2EX60 provides zero-latency performance, making it ideal for gaming, home offices, surveillance systems, video conferencing, live streaming, and other professional USB extension applications.

Key Features

  • Extends USB 2.0 signals up to 60m (196ft) over CAT5e/CAT6/CAT6a/CAT7 cable
  • Supports USB 2.0 data transfer speeds up to 480Mbps
  • Connects up to 4 USB devices through the integrated USB hub
  • Zero-latency transmission for responsive real-time performance
  • One-Way PoC allows both units to operate using only one power adapter
  • Plug-and-play installation with no driver or software required
  • Compatible with Windows 10/8/7/XP, macOS, and Linux
  • Extends USB-HID devices up to 80m (263ft)
  • Compact, ultra-slim, and space-saving design
Technical

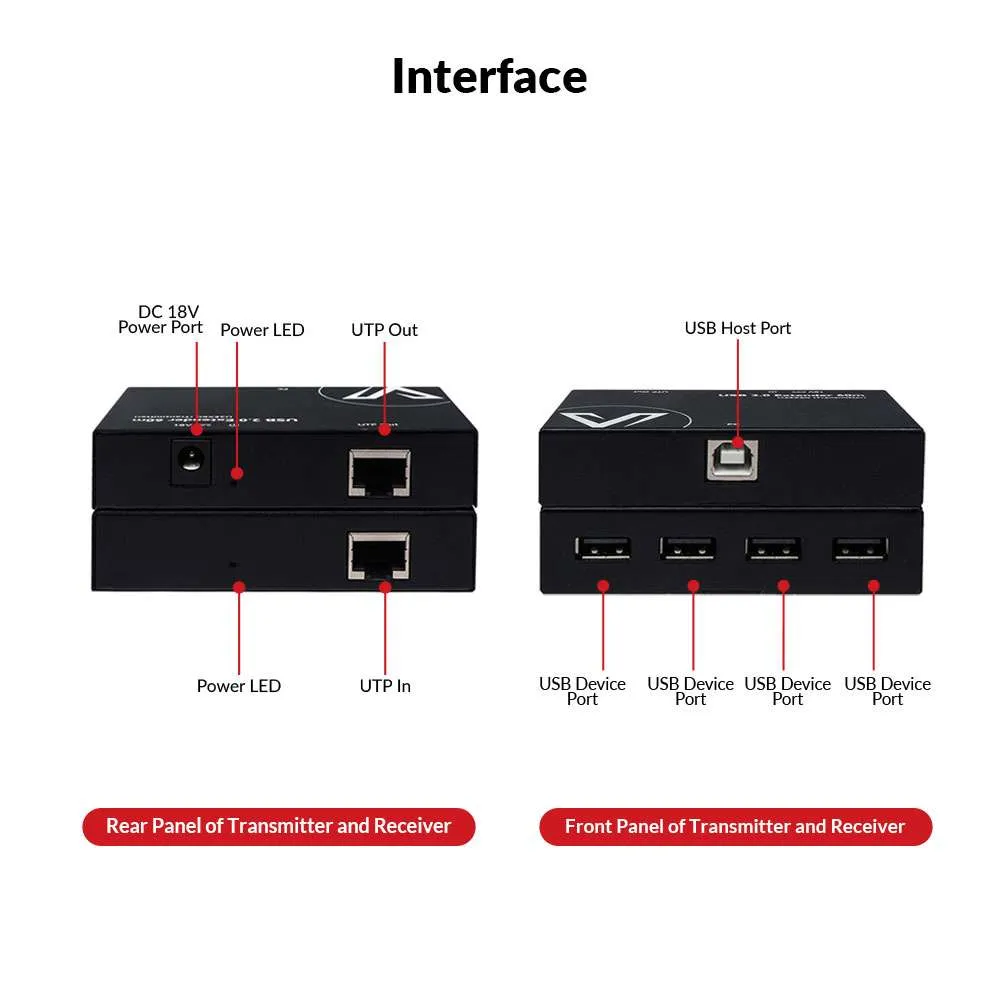

Input/Output Port TX: 1 x DC 18V, 1 x USB Type-B, 1 x UTP Out

RX: 4 x USB Type-A, 1 x UTP In

General
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Power Supply DC 18V 1A (Transmitter powers receiver through PoC)
Power Consumption (Max) 6.4W (Pair)
Device Dimensions

(W x H x D)

TX: 90mm x 20mm x 55mm /3.54” x 0.79” x 2.17”

RX: 90mm x 20mm x 71mm /3.54” x 0.79” x 2.8”

Net Weight TX: 0.11kg/0.242lb

RX: 0.14kg/0.308lb
