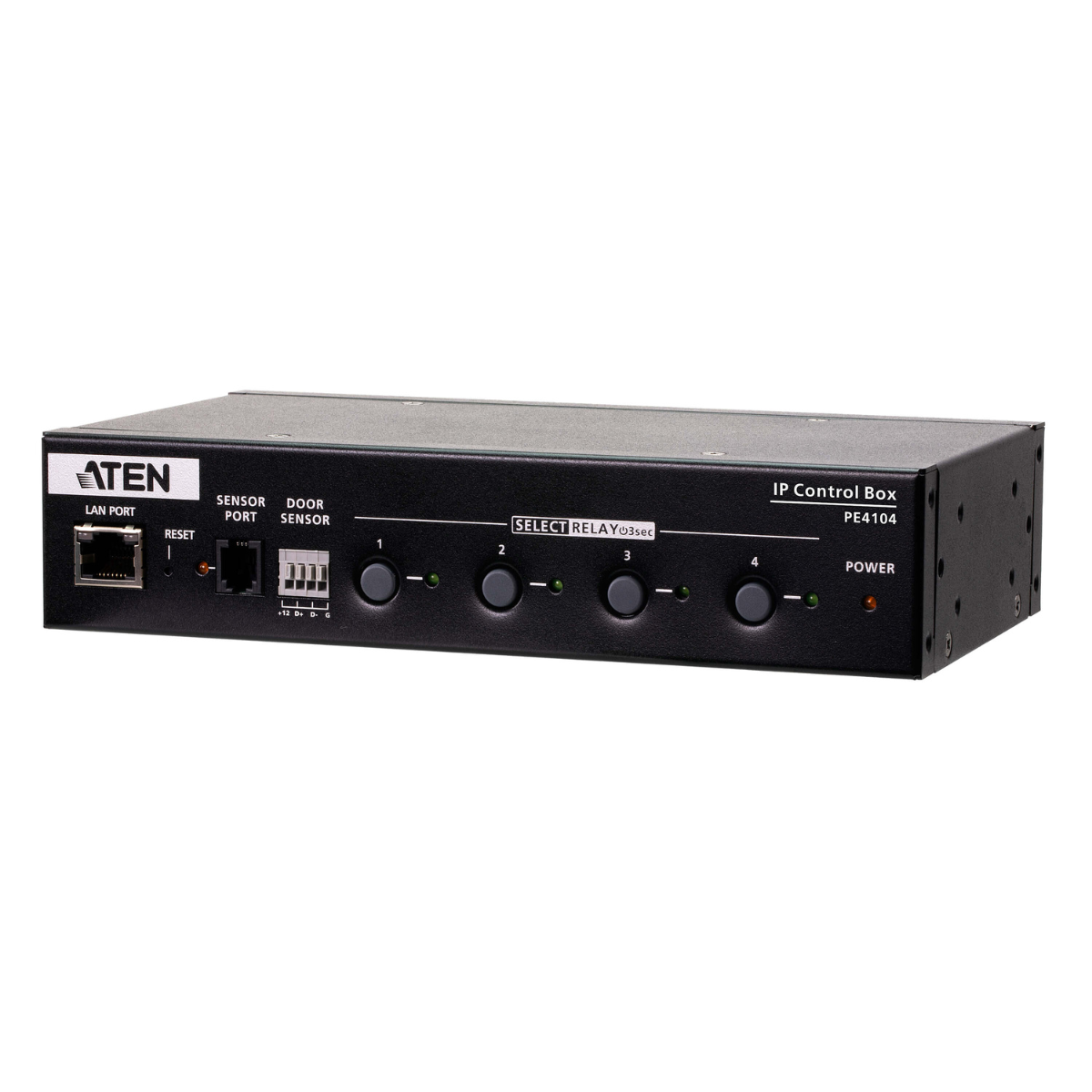

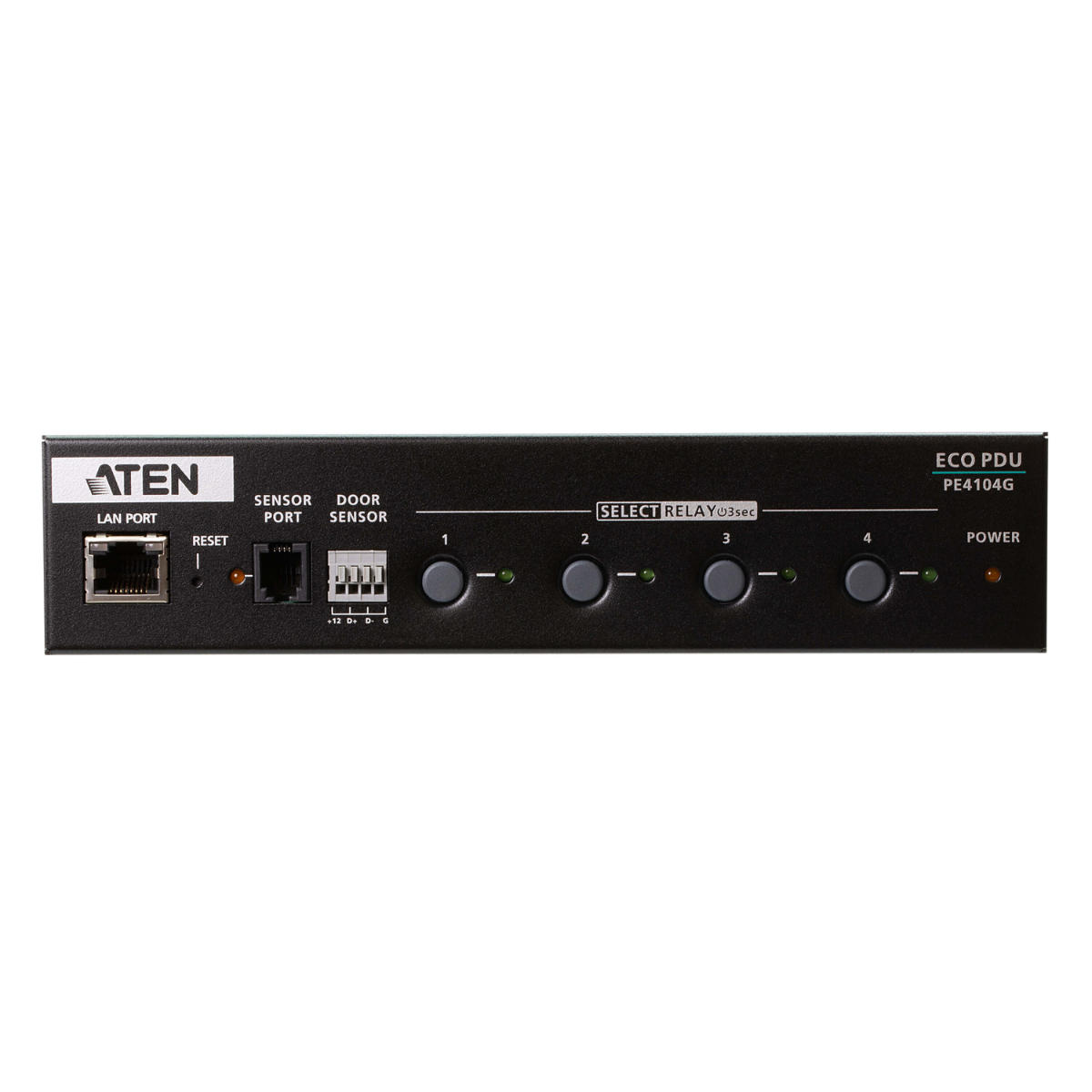

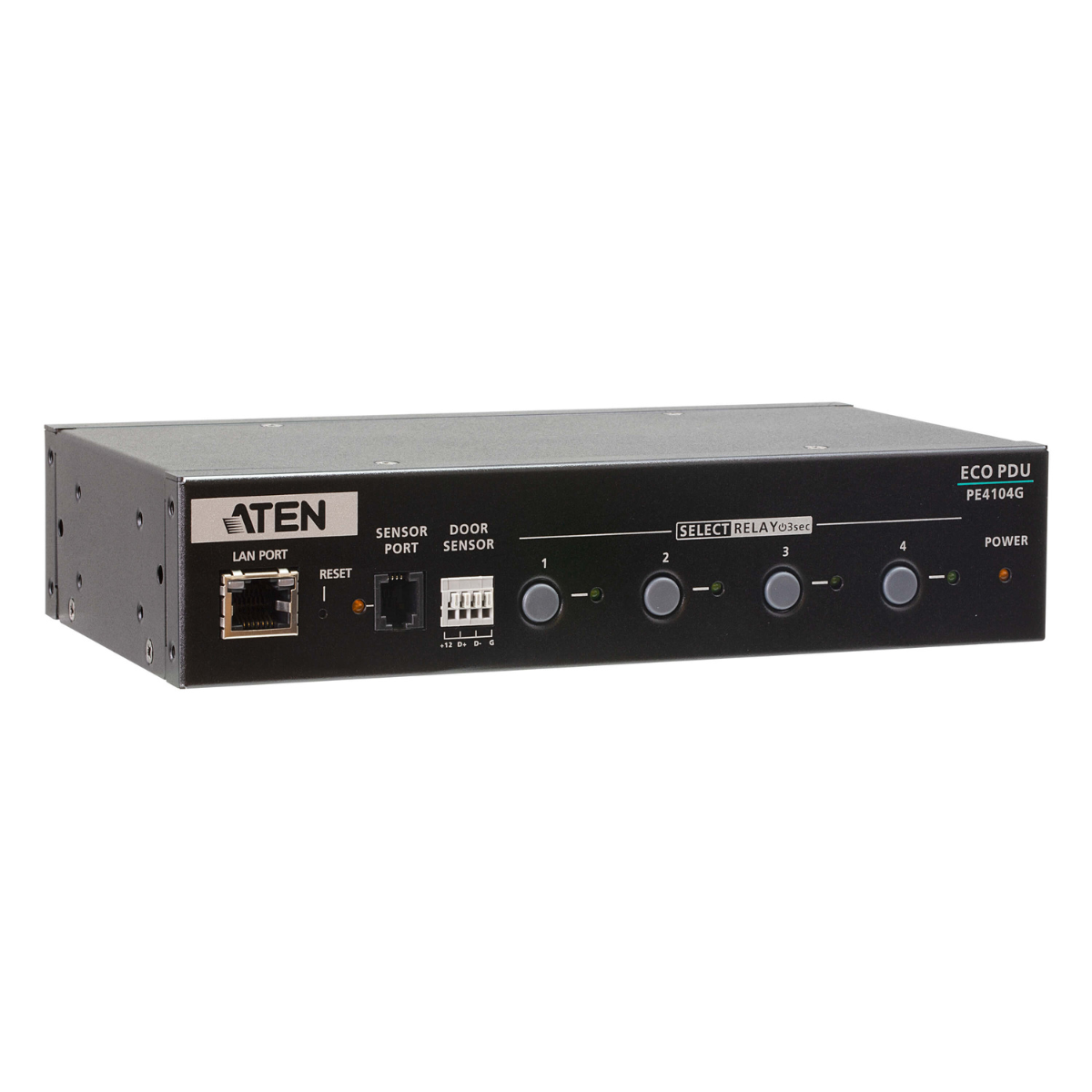

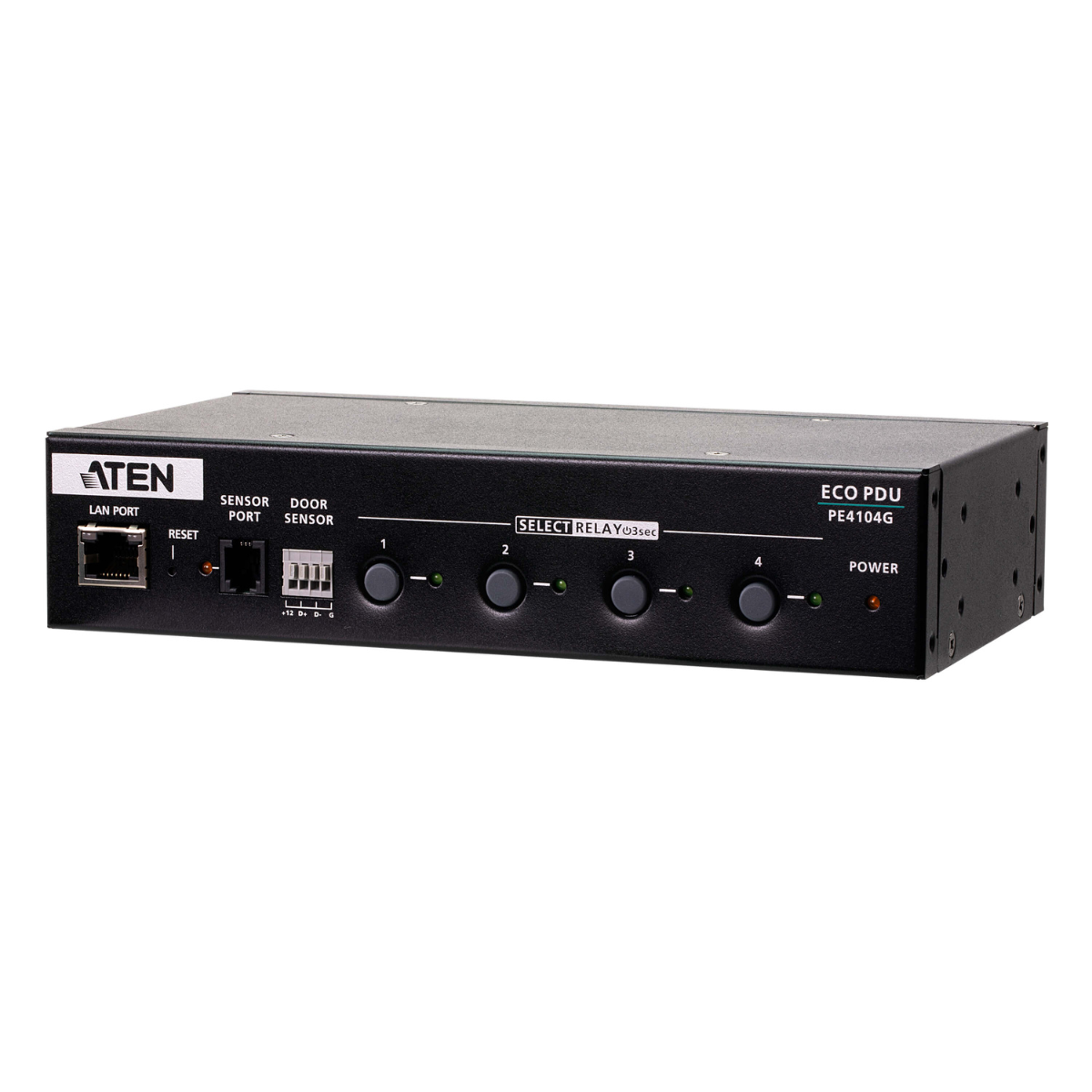

ATEN 4-Outlet Eco PDU Power Controller

PE4104

Local and remote power outlet control (On, Off, Power Cycle) by individual outlets
Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in a proper order
Works with web-based eco DC software
Remote power control via TCP/IP and a built in 10/100 Ethernet port

The ATEN Eco PDU PE4104 is an intelligent 4-outlet power controller designed to provide secure, centralized, and remote power management for IT equipment. Built for data centers, edge computing environments, retail applications, and digital signage deployments, the PE4104 helps organizations reduce operating costs while improving power control and system availability.

Featuring four power outlets in IEC or NEMA socket configurations, the ATEN Eco PDU PE4104 enables administrators to remotely monitor and manage connected devices through a standard TCP/IP network connection. This allows users to control power distribution from virtually anywhere, improving operational efficiency and reducing the need for on-site intervention.

One of the key advantages of the ATEN Eco PDU PE4104 is its advanced remote power control capability. Administrators can remotely switch connected devices on or off, schedule power operations, and configure delayed startup sequences to prevent power inrush issues that may affect system stability. This intelligent power sequencing helps protect equipment and ensures reliable system performance.

The ATEN Eco PDU PE4104 also integrates seamlessly with ATEN eco DC management software, providing an intuitive graphical user interface for centralized device monitoring and configuration. Users can easily manage multiple PDUs, reboot unresponsive devices remotely, and optimize power usage across their infrastructure.

Designed with a slim and compact form factor, the PE4104 supports both rack-mount and desk-mount installations, making it suitable for space-constrained environments where flexible deployment is essential.

Key Features

Intelligent 4-outlet power controller
Remote power management via TCP/IP
Individual outlet power control
Power scheduling and delayed startup configuration
Prevents power inrush with power sequencing technology
Centralized management through ATEN eco DC software
Remote device reboot capability
Compact and space-saving design
Supports rack-mount and desk-mount installation
Secure and reliable power distribution
Easy deployment in edge computing and retail environments

Function	PE4104A	PE4104G
Electrical
Nominal Input Voltage	100-120 VAC	100 – 240 VAC
Maximum Input Current	15A(Max), 12A(UL de-rated)	10A(Max)
Input Frequency	50-60 Hz	50-60 Hz
Input Connection	NEMA 5-15P	IEC C14
Input Power	1800VA(Max) 1440VA(UL de-rated)	2400VA(Max)

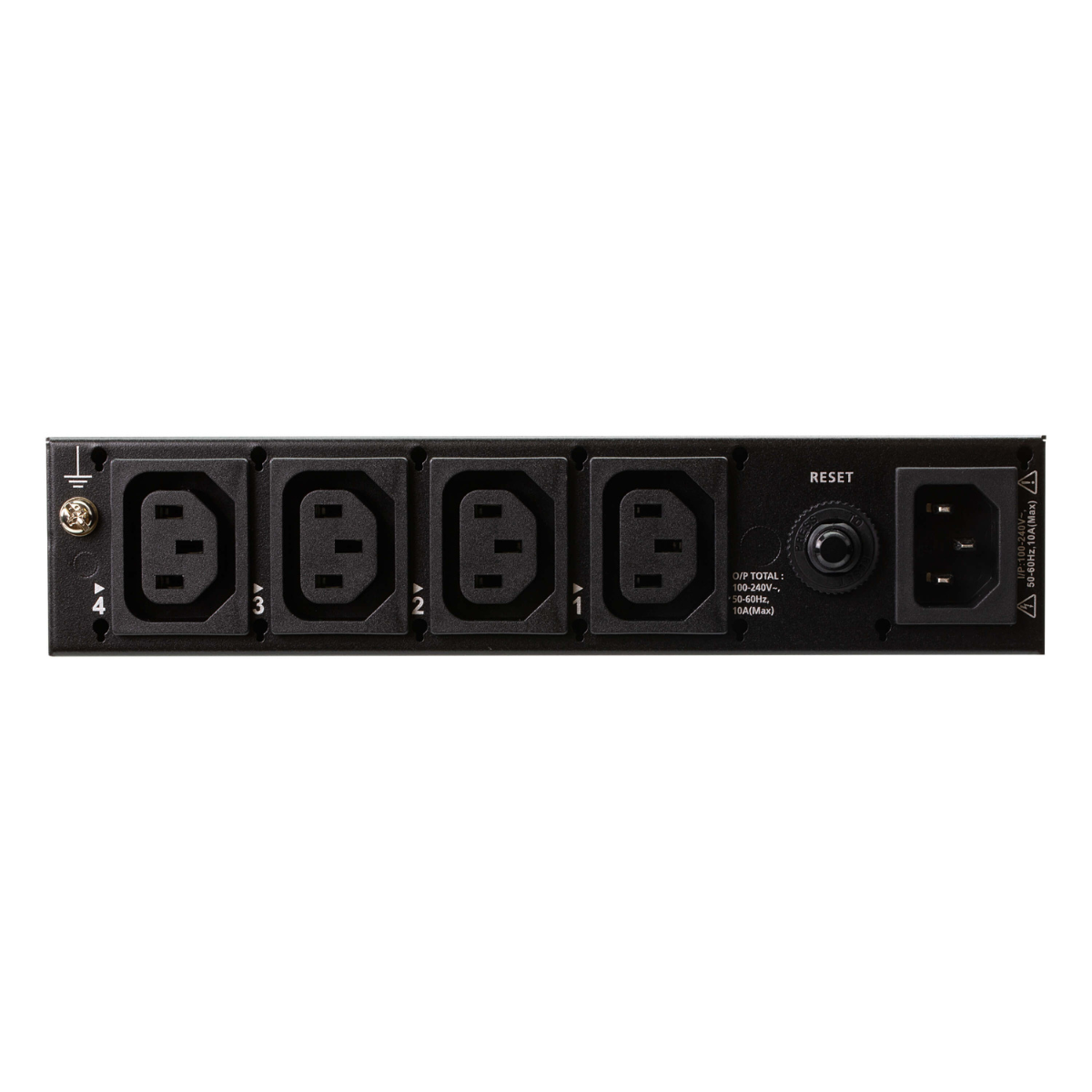

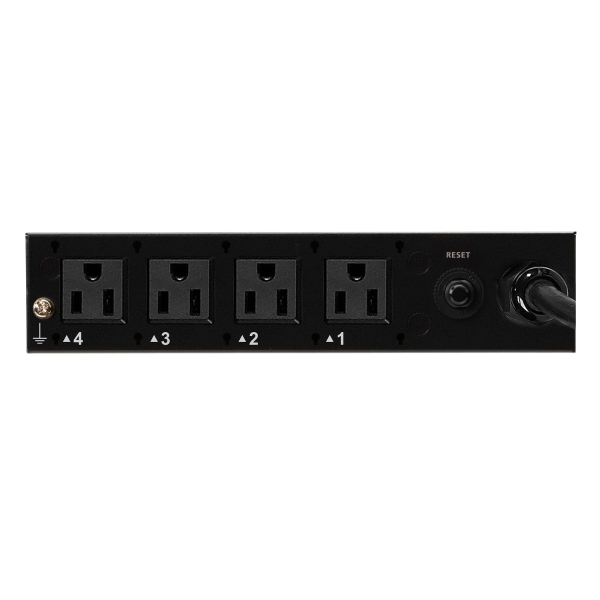

Outlet Type	(4) NEMA 5-15R	(4) IEC 320 C13
Nominal Output Voltage	100-120 VAC	100 – 240 VAC
Maximum Output Current (Outlet)	15A(Max), 12A(UL de-rated)	10A(Max)
Maximum Output Current (Bank)	15A(Max), 12A(UL de-rated)	10A(Max)
Maximum Output Current (Total)	15A(Max), 12A(UL de-rated)	10A(Max)
Breakers	Yes(UL1077)	Yes(UL1077)
Metering	No	No
Outlet Switching	Yes	Yes
Power Consumption	AC110V:3.1W:20BTU/h AC220V:3.5W:22BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.	AC110V:3.1W:20BTU/h AC220V:3.5W:22BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Physical Properties
Dimensions (L x W x H)	20.00 x 12.81 x 4.40 cm (7.87 x 5.04 x 1.73 in.)	20.00 x 12.81 x 4.40 cm (7.87 x 5.04 x 1.73 in.)
Weight	0.90 kg ( 1.98 lb )	0.90 kg ( 1.98 lb )
Power Cord Length	3m	3m
Environmental
Temperature (Operating / Storage)	0 – 50℃ / -20 – 60℃	0 – 50℃ / -20 – 60℃
Humidity (Operating & Storage)	0 – 80% RH, Non-Condensing	0 – 80% RH, Non-Condensing
Compliance
EMC Verification	FCC Class A	CE-EMC
Safety Verification	By request	CE-LVD
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
