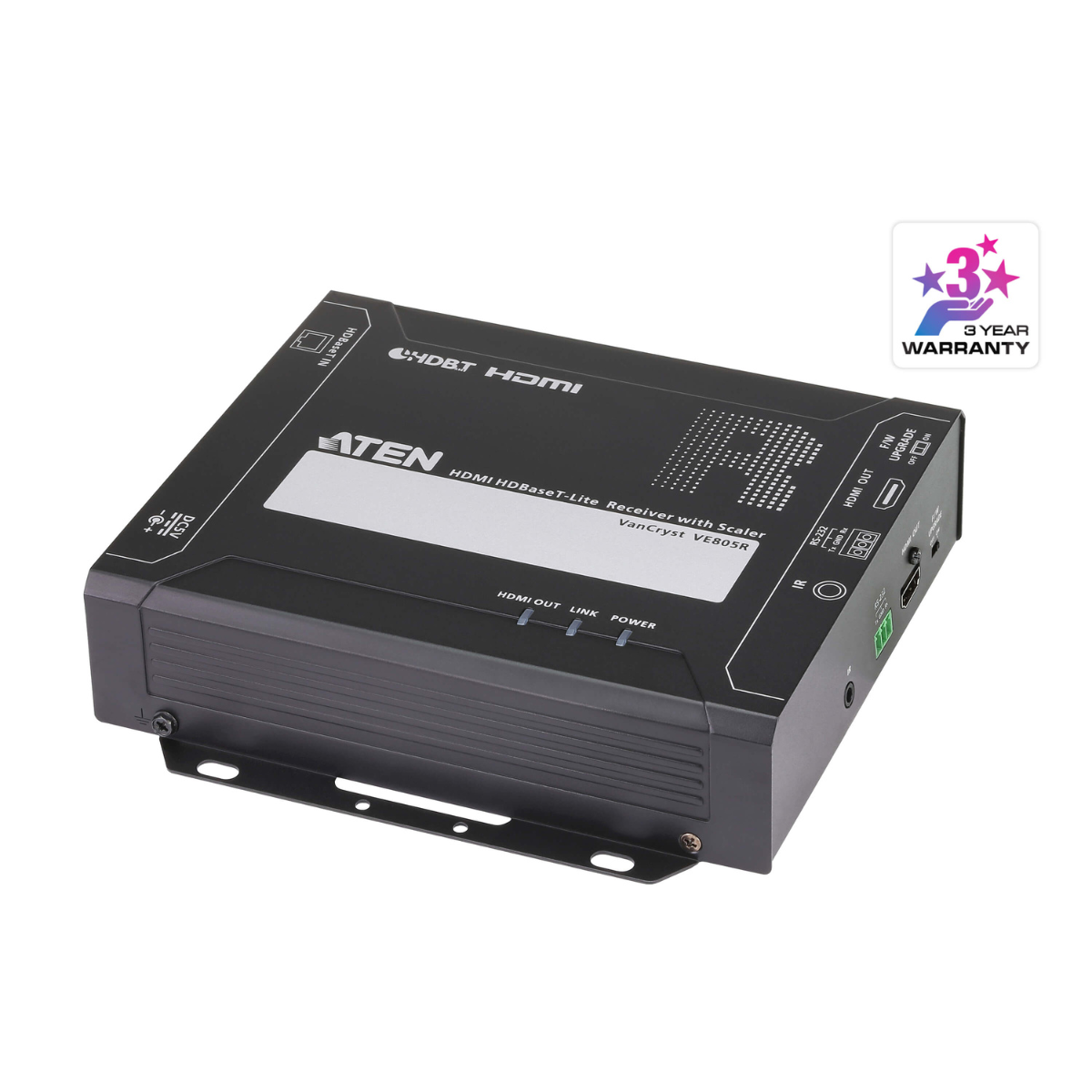

ATEN HDMI HDBaseT-Lite Receiver with Scaler (1080p@70M) (HDBaseT Class B)

VE805R

HDBaseT Connectivity – extends the connection between the VM8514 HDBaseT outputs and an HDMI display over a long distance via single Cat 5e/6a cable
Scaler – features a scaling function to integrate a video wall seamlessly with various output formats
Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions*
Video Wall – features configurable video wall profiles available for custom screen layouts via simple point-n-click web GUI*

Description

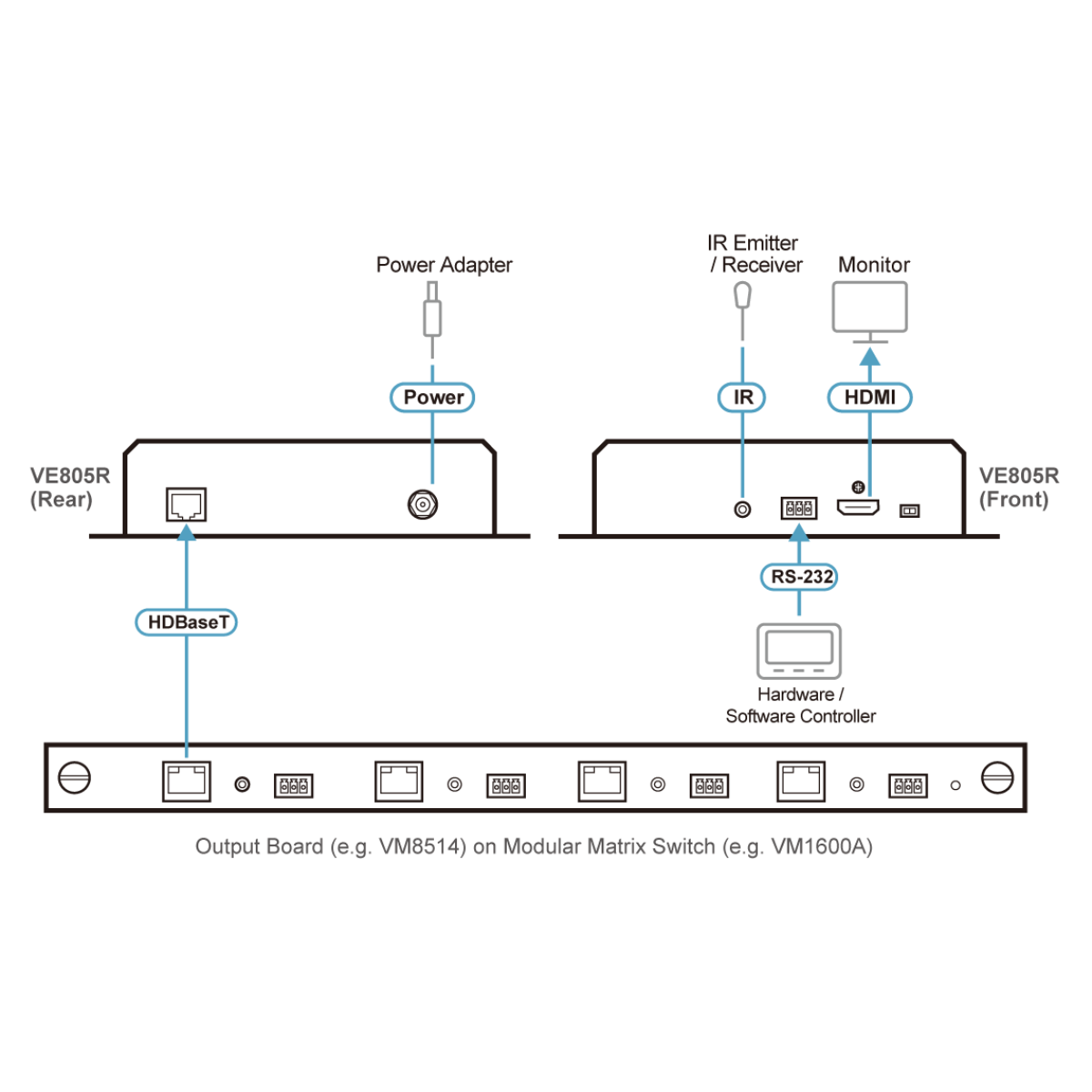

The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend a HDMI display up to 60 m from the HDMI source device using a single Cat 5e/6 cable or up to 70 m via a Cat 6a cable.

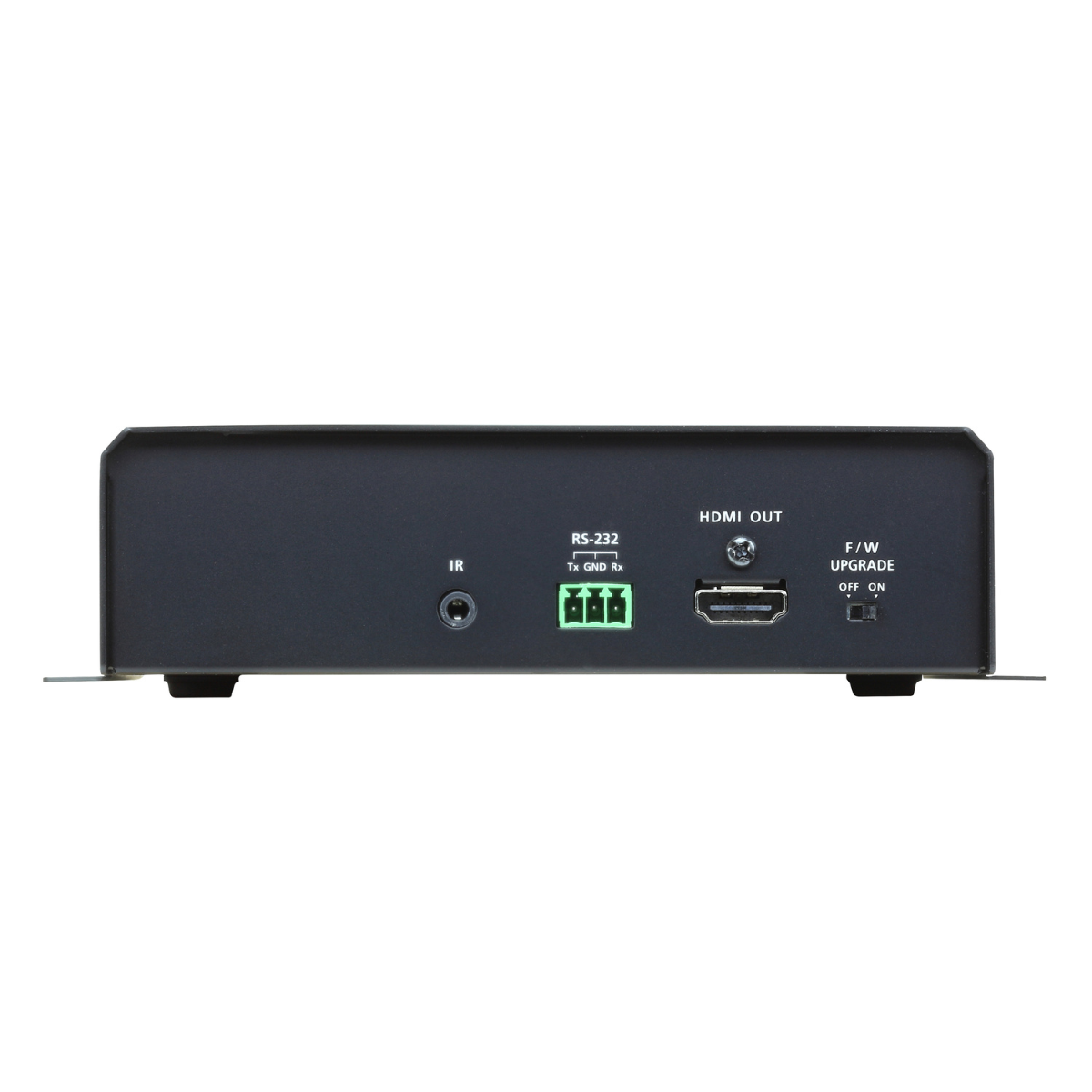

With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch™ functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.

Package Contents
